Electrical data cable EEM 33-52RF-shieldedIP67shielded
Add to favorites
Compare this product
Characteristics
- Type
- data
- Protection
- RF-shielded, IP67, shielded
- Configuration
- straight
- Number of wire
- 5 wires, 4 wires
- Material of the insulation
- PUR
- Bus
- CAN Bus, CANopen
- Other characteristics
- pre-assembled
- Temperature
Max.: 90 °C
(194 °F)Min.: -25 °C
(-13 °F)- Cross-section
0.25 mm², 0.34 mm²
(0 in², 0 in²)- Length
5 m
(16'04" )
Description
Product

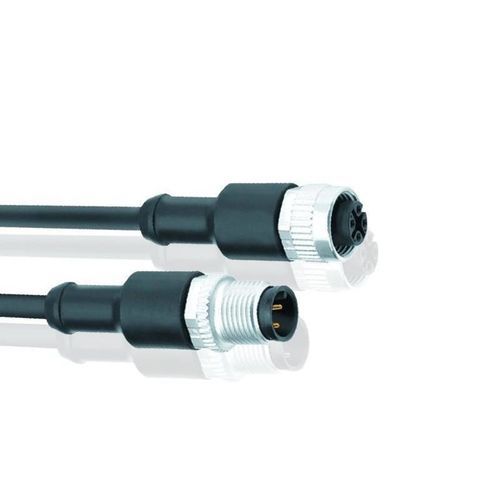

Adapter cable EEM 33-52 M12x1 5-pin, straight, shielded, with cable (standard variant: 5 m).
Protocols / Tags
Key features
Variants
Item number — Description — Length
400106373 — EEM-33-52 — 5 m
Technical specifications
Adapter cable EEM 33-52 M12x1 5-pin, straight, shielded, with cable (standard variant: 5 m).
Protocols / Tags
- CANopen
- CAN SAE J1939
Key features
- Connector: M12x1, 5-pin, straight, shielded
- Plug housing material: PUR
- Cable sheath: PUR, Ø = 6.7 mm; operating temperature connector -25 ... +90 °C, cable 20 ... +80 °C
- Lead wires: PE, 2x0.25 mm² + 2x0.34 mm²
- Protection class: IP67 (minimum)
- Shielded design — electromagnetic compatibility (EMC)
- CAN bus compatible
- UL-listed
Variants
Item number — Description — Length
400106373 — EEM-33-52 — 5 m
Technical specifications
- Model: EEM 33-52
- Connector: M12x1, 5-pin, straight, shielded
- Plug housing material: PUR
- Cable sheath: PUR, outer diameter ≈ 6.7 mm
- Operating temperature: connector -25 ... +90 °C; cable 20 ... +80 °C
- Lead wire configuration: PE, 2x0.25 mm² + 2x0.34 mm²
- Protection class: IP67
- Protocols: CANopen, CAN SAE J1939 (CAN bus compatible)
- Approvals / properties: EMC-shielded, UL-listed
