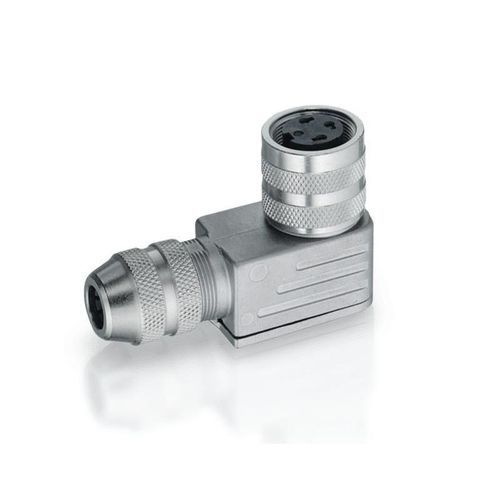

Data connector EEM 33-77

wire-to-wireright-anglesolder

Product summary
An angled M16x0.75 5-pin connector, model EEM 33-77, A-coded. Cap nut included, solder termination, shielded for improved EMC and rated to IP67. Suitable for reliable industrial cable connections with UL approval.

Key features

• Connector type: M16x0.75
• Contact count: 5-pin
• Orientation: angled
• Coding: A-coded
• Termination: solder terminals
• Includes: cap nut
• Shielding: shielded (improved electromagnetic compatibility)
• Protection class: IP67 (minimum)
• Approvals: UL

Technical specifications (table)
Plug housing: nickel-plated copper‑zinc
Protection class min.: IP67
For cable diameters: 4 ... 6 mm, PG7; conductor cross-section max. 0.75 mm²

Variants / item numbers
item number - description
400005615 - EEM 33-77

Available resources

• CAD models (product-related CAD data available)
• Data sheets (electronic data sheets available)
• Instructions for use, drawings, declarations of conformity / certificates and brochures for the M16 connector system

Notes
Angled M16x0.75 connector intended for shielded applications requiring IP67 protection; suitable for cable diameters 4–6 mm and conductor cross-sections up to 0.75 mm² with PG7 gland.

Technical characteristics / specifications

• Model: EEM 33-77
• Connector thread: M16 x 0.75
• Pins: 5
• Configuration: angled, A-coded
• Housing material/finish: nickel-plated copper‑zinc
• Termination: solder terminals
• Cap nut: included
• Shielded: yes (improved EMC)
• Protection class: IP67 (min.)
• Cable diameter range: 4 ... 6 mm (PG7), conductor cross-section max. 0.75 mm²
• Approvals: UL
• Manufacturer item number: 400005615
