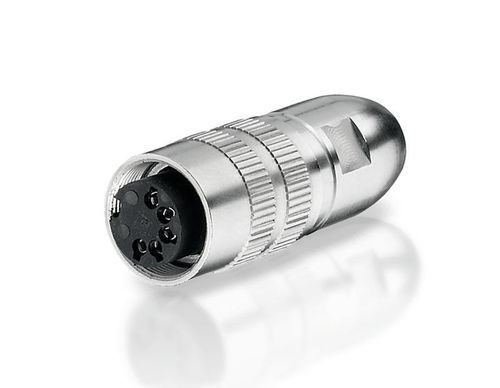

Wire-to-wire connector EEM 33-84straightsolderM16
Add to favorites
Compare this product
Characteristics
- Format
- wire-to-wire
- Shape
- straight
- Connection type
- solder
- Size
- M16
- Electrical characteristics
- 8-pole, shielded
- Material
- nickel-plated brass
- Protection class
- IP68
- Pitch
Min.: 0.75 mm
(0.03 in)Max.: 0.75 mm
(0.03 in)
Description
Short description
M16x0.75 connector, 8-pin, straight with cap nut, solder terminals, shielded, protection rating IP68. Suitable for cable diameters 6–8 mm and conductor cross-sections up to 0.75 mm².
Technical specifications
Plug housing: nickel-plated copper-zinc
Protection rating (min.): IP68
For cable diameters: 6 ... 8 mm, max. conductor cross-section: 0.75 mm²
Variants
Features
Technical characteristics
M16x0.75 connector, 8-pin, straight with cap nut, solder terminals, shielded, protection rating IP68. Suitable for cable diameters 6–8 mm and conductor cross-sections up to 0.75 mm².
Technical specifications
Plug housing: nickel-plated copper-zinc
Protection rating (min.): IP68
For cable diameters: 6 ... 8 mm, max. conductor cross-section: 0.75 mm²
Variants
- 400005627 — EEM 33-84
Features
- 8-pin M16x0.75 connector
- Straight design with cap nut
- Solder terminals
- Shielded connector for improved EMC
- Ingress protection: IP68
Technical characteristics
- Model: EEM 33-84
- Manufacturer / Brand: Novotechnik
- Thread / Size: M16 x 0.75
- Number of pins: 8
- Orientation: straight
- Housing material / finish: nickel-plated copper-zinc
- Terminals: solder terminals
- Shielding: yes (shielded)
- Protection rating: IP68 (minimum)
- Cable diameter range: 6 – 8 mm
- Maximum conductor cross-section: 0.75 mm²
- Item number (variant): 400005627
