Industrial pipe assembly EEM 33-24

PVCthermoplastic

Short description

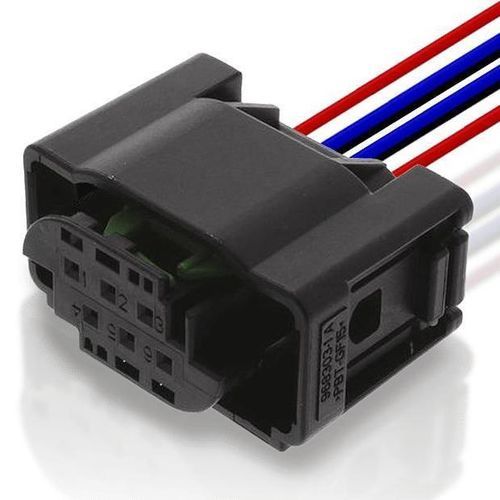

MQS connector, 6-pin, PBT GF15 housing, with individual wires 0.5 mm², PVC cable 6 x 0.5 mm², length 1 m, open end.

Tags

• RSA
• RFE
• RSK

Variants
item number | Description | Length
400108029 | EEM-33-24 | 1 m

Additional information
Protection class IP69 in accordance with DIN EN 60529.

Technical specifications

• Connector type: MQS, 6-pin
• Housing material: PBT GF15
• Lead wires / Cable: PVC, 6 x 0.5 mm²
• Individual wire cross-section: 0.5 mm²
• Cable length: 1 m
• Cable end: open end
• Operating temperature: -40 ... +120 °C
• Protection class: IP69 (DIN EN 60529)
• Variant item number: 400108029 (EEM-33-24)
