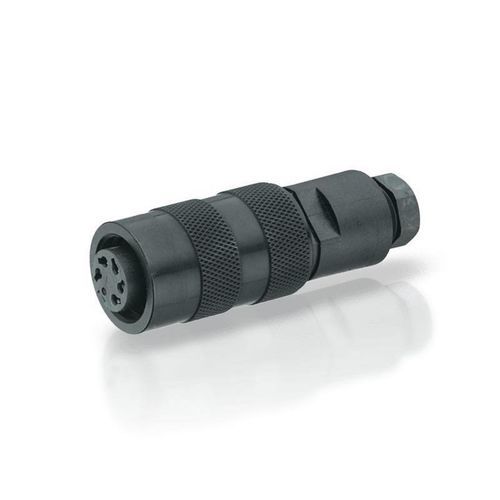

Wire-to-wire connector EEM 33-70straightscrew couplingM16
Add to favorites
Compare this product
Characteristics
- Format
- wire-to-wire
- Shape
- straight
- Connection type
- screw coupling
- Size
- M16
- Material
- PA
- Protection class
- IP67
- Pitch
0.75 mm
(0.03 in)
Description
Product overview
Technical data
Variants
Installation and use
Ordering note
- Model designation: EEM 33-70
- Type / thread: M16x0.75 connector
- Connector descriptions on page: M16x0.75 5-pin connector and Connector, 3-pin, straight, unshielded, with cable
- Tags: F-200, TS, TRS, IP
Technical data
- Plug housing: PA
- Protection class (minimum): IP67 (according to DIN EN 60529)
- Cable diameter range: 4 ... 6 mm
- Maximum conductor cross-section: 0.75 mm²
- Thread / connector size: M16x0.75
- Pin count on product page: 5-pin (title) and 3-pin (short description) — both indications appear
Variants
- Item number: 400005611 — Description: EEM 33-70
Installation and use
- Designed for straight, unshielded cable connection; suitable for cable Ø 4–6 mm and conductors up to 0.75 mm²
- When correctly mounted, meets IP67 protection requirements
Ordering note
- Product page shows both 5-pin and 3-pin designations. Confirm the required pin configuration (3-pin or 5-pin) with the supplier before ordering.
- Datasheets and connector system documentation may be available for download on the product page.
Catalogs
No catalogs are available for this product.
