Data connector EEM 33-75
wire-to-wireright-anglescrew

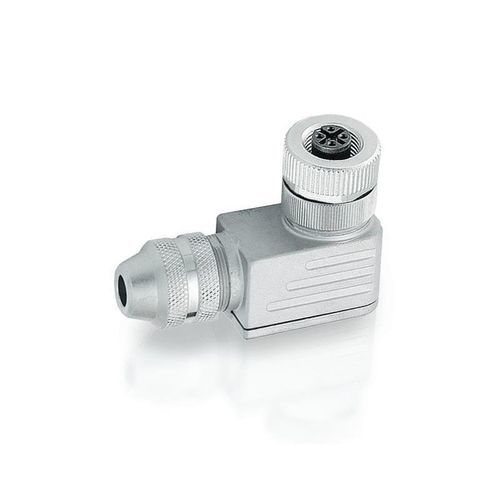

Data connector - EEM 33-75 - Novotechnik - wire-to-wire / right-angle / screw
Data connector - EEM 33-75 - Novotechnik - wire-to-wire / right-angle / screw
Add to favorites
Compare this product
Go to the Novotechnik website for more information

Characteristics

Type
data
Format
wire-to-wire
Shape
right-angle
Connection type
screw, socket
Size
M12 A-coded, M12
Electrical characteristics
5-pole
Material
metal
Protection class
IP67
Other characteristics
shielded

Description

Description
Angled M12x1 coupling socket, 5-pin (A-coded), model EEM 33-75. Metal housing with cap nut and screw terminal connection. Protection rating IP67 (minimum). Shieldable for use in screened/EMC-sensitive installations. Contact insert can be rotated in 90° increments. Suitable for cable diameters 6 ... 8 mm; max. conductor cross-section 0.75 mm².

Product tags
  • CANopen
  • CAN SAE J1939


Technical specifications
  • Model: EEM 33-75
  • Part number: 400005646
  • Connector type: M12x1, A-coded
  • Number of pins: 5
  • Orientation: angled
  • Housing material: Metal
  • Connection: screw terminal
  • With cap nut
  • Protection class (min.): IP67
  • Shieldable (suitable for screened/EMC systems)
  • Contact insert rotatable in 90° increments
  • For cable diameters: 6 ... 8 mm
  • Max conductor cross-section: 0.75 mm²
