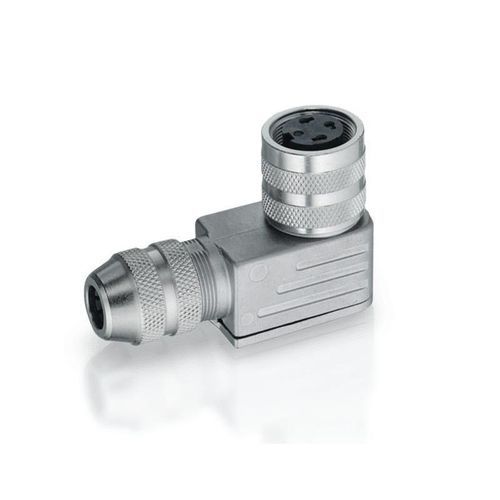

Data connector EEM 33-85

wire-to-wireright-anglesolder

Product overview
Angled M16x0.75 8-pin coupling connector EEM 33–85 with cap nut, solder terminals and shielded housing. Designed for shielded cable systems and industrial installations; protection class IP67; UL-approved.

Features

• Angled M16x0.75 8-pin coupling connector
• Cap nut included for secure mechanical connection
• Solder connection terminals for reliable contacts
• Shielded design for high electromagnetic compatibility (EMC)
• Protection class IP67 (dust-tight and protected against temporary immersion)
• UL approved

Technical specifications
Model: EEM 33–85
Thread/connection: M16x0.75
Number of contacts: 8
Plug housing: nickel-plated copper-zinc (CuZn)
For cable diameters: 6–8 mm; conductor cross-section max. 0.75 mm²
Protection class min.: IP67

Variants

• Item number 400005628 — EEM 33–85

Notes
Angled design; intended for shielded systems. Solder-type terminals; installation and connector documentation available on the product page (CAD models, datasheets, manuals, certificates).
