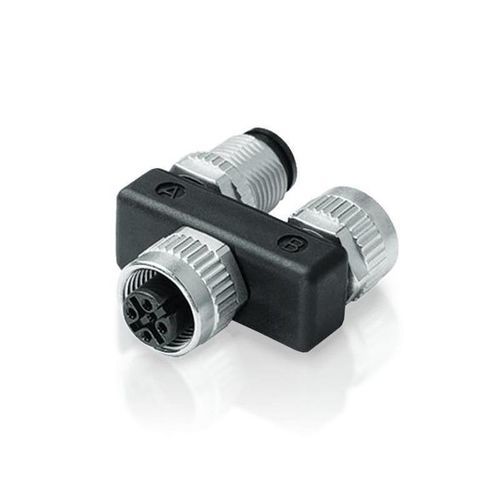

IP68 distributor EEM 33-45

oil-resistant

Product summary
Dual distributor with two M12x1 outlets, 5-pin A-coded connector, 1:1 wiring. Compatible with CAN bus protocols (CANopen, CAN SAE J1939).

Features

• Dual distributor (two M12x1 outlets)
• 5-pin, A-coded
• Wiring: 1:1
• Plug housing material: PUR
• Protection class (min.): IP68 (in accordance with DIN EN 60529)
• Excellent resistance to oils, coolants and lubricants
• Supports CAN bus protocols: CANopen, CAN SAE J1939

Variants
Item number: 400056145
Description: EEM 33-45

Technical specifications

• Model: EEM 33-45
• Connector thread / series: M12x1
• Number of pins: 5
• Coding: A-coded
• Wiring: 1:1
• Plug housing material: PUR
• Protection class (min.): IP68 (DIN EN 60529)
• Protocol compatibility: CANopen, CAN SAE J1939
• Resistance: oils, coolants, lubricants
• Item number: 400056145
