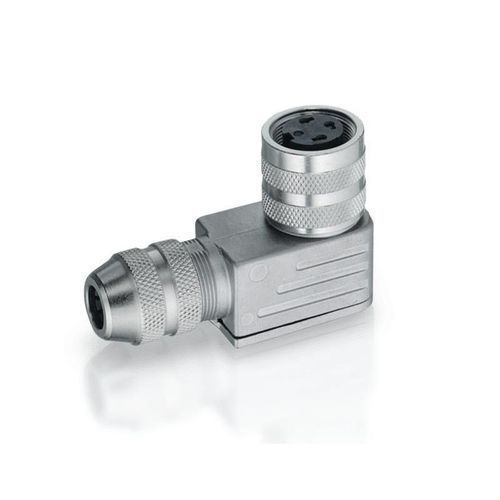

Data connector EEM 33-94combinedelectrical power supplyright-angle
Add to favorites
Compare this product
Characteristics
- Type
- data, combined, electrical power supply
- Shape
- right-angle
- Connection type
- socket, screw
- Size
- M16
- Material
- nickel-plated brass
- Protection class
- IP67
- Other characteristics
- EMC
Description
Product overview
Coupling socket EEM 33-94, M16x0.75 thread, 6-pin. Angled coupling/socket for industrial signal and power connections, A-coded, shieldable, with cap nut and screw terminal connection; IP67; contact insert rotatable in 90° increments; UL-approved.
Product details (as shown on page)
Page also shows an alternative connector: M12x1 coupling/socket, 5-pin, angled, A-coded, with cap nut, screw terminal connection, IP67, shieldable. Contact insert can be rotated in 90° increments.
Features
Technical specification table
Plug housing: Nickel-plated copper-zinc
Protection class min.: IP67
For cable diameters: 6 ... 8 mm, max. 0.75 mm²
Variants
Item number 400005648 — EEM 33-94
Characteristics / technical specifications
Coupling socket EEM 33-94, M16x0.75 thread, 6-pin. Angled coupling/socket for industrial signal and power connections, A-coded, shieldable, with cap nut and screw terminal connection; IP67; contact insert rotatable in 90° increments; UL-approved.
Product details (as shown on page)
Page also shows an alternative connector: M12x1 coupling/socket, 5-pin, angled, A-coded, with cap nut, screw terminal connection, IP67, shieldable. Contact insert can be rotated in 90° increments.
Features
- Angled coupling/socket design
- Screw terminal connection
- Cap nut
- Shieldable — excellent electromagnetic compatibility (EMC)
- Contact insert rotatable in 90° increments
- UL-approved
Technical specification table
Plug housing: Nickel-plated copper-zinc
Protection class min.: IP67
For cable diameters: 6 ... 8 mm, max. 0.75 mm²
Variants
Item number 400005648 — EEM 33-94
Characteristics / technical specifications
- Model: EEM 33-94
- Item number: 400005648
- Coupling / socket thread: M16x0.75
- Pin count: 6-pin
- Alternative connector on page: M12x1, 5-pin
- Plug housing material: Nickel-plated copper-zinc
- Protection class: IP67 (minimum)
- For cable diameters: 6 ... 8 mm
- Max. conductor cross-section: 0.75 mm²
- Connection type: screw terminal
- Coding: A-coded
- Shielding: shieldable, excellent EMC
- Contact insert: rotatable in 90° increments
- Approvals: UL-approved
