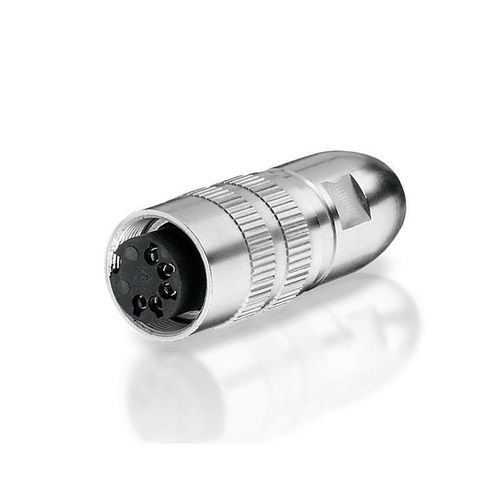

Encoder socket EEM 33-82

Product overview
Coupling socket, M16x0.75 thread, 6-pin, straight (inline) orientation. Supplied with coupling nut and solder terminals. Shielded design for excellent electromagnetic compatibility (EMC). Protection rating IP68 (minimum). Suitable for cable diameters 4...8 mm and max. conductor cross-section 0.75 mm².

Features

• Thread / connector size: M16x0.75
• Contact configuration: 6-pin
• Orientation: straight (inline)
• Termination: solder terminals
• With coupling nut
• Shielded design — excellent EMC
• Protection rating: IP68 (minimum)

Material / Mechanical

• Plug housing: nickel-plated copper-zinc (CuZn)
• Suitable cable diameters: 4...8 mm
• Maximum conductor cross-section: 0.75 mm²

Variants (table)
Item number
400005639
Description
EEM 33-82

Technical specifications

• Model: EEM 33-82
• Product type: Coupling socket
• Thread / coupling: M16x0.75
• Number of pins: 6
• Mounting / orientation: Straight (inline)
• Terminals: Solder terminals
• With coupling nut
• Shielding / EMC: Shielded system — excellent EMC
• Protection class (min.): IP68
• Cable diameter range: 4...8 mm
• Max. conductor cross-section: 0.75 mm²
• Item number (example variant): 400005639
