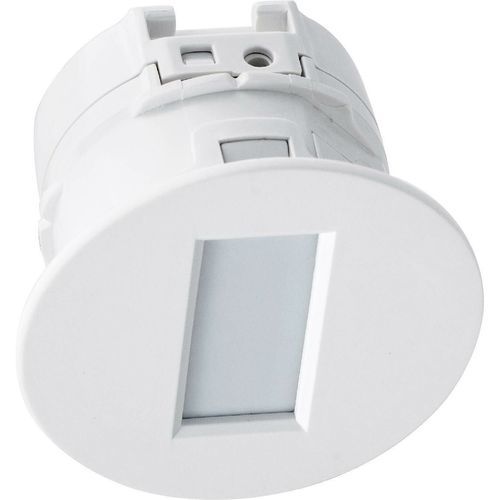

Intrusion detector AP-20NB

motionpassive infraredPIR

Overview
Compact, wired recessed PIR motion detector for indoor motion detection and integration with alarm and automation systems.

Key features

• 6 m narrow curtain or plane detection
• Ceiling (high-mount) or wall mount options
• Recessed installation or 86-type box mounting
• Adjustable detection sensitivity (multiple levels)
• Low current consumption and LED status indication
• Tamper/trouble output for cover removal detection

Applications

• Commercial and residential security systems
• Corridors, doorways, windows and perimeters
• Integration with alarm panels and building automation

Details
Compact and discreet, the AP-20NB is designed for wall or ceiling mounting to create 6 m (20 ft) curtain or plane detection zones. It is suitable for protecting areas close to windows and doors, for hallway coverage, and for integration with control panels in indoor installations.

Technical specifications

• Product Range: AP Series
• Model Code: AP-20NB(C)
• Detection method: Passive infrared (PIR)
• Detection coverage: < Ceiling mount > 6.0 m x 1.0 m at 4.5 m height; < Wall mount > 6.0 m x 4.5 m at 1.5 m height
• Detectable speed: 0.3 to 3.0 m/s
• Sensitivity: approx. 2.0°C at 0.6 m/s (adjustable levels)
• Power input: 9.5 to 16 V DC
• Current draw (12 V DC): Stand-by 11 mA, Max. 13 mA
• Alarm output (R): N.O./N.C., 28 V DC 200 mA max.
• Trouble/tamper output: N.C. 28 V DC 100 mA max. (contact opens when casing is removed)
• LED indicator: Power-up warm-up: blinking; Stand-by: off; Alarm: solid on
• Operating temperature: -20 to +50°C
• Relative humidity: < 95% (non-condensing)
• Installation: Indoor
• Weight: 50 g
