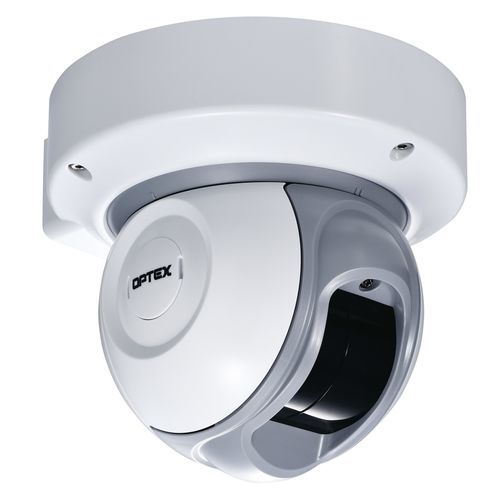

RJ45 LIDAR sensor RLS-2020I

high-resolution

Overview
The RLS-2020I is a compact indoor LiDAR scanner (Grade 3) providing a customisable virtual wall/plane with detection coverage up to 20 x 20 m and a 95° field of view. It identifies people and objects to enhance perimeter and area protection where conventional sensors or video detection are limited.

Key features

• LiDAR laser detection with 20 x 20 m coverage, 95°
• Customisable virtual wall/plane/ceiling zones
• Multi-angle adjustable housing for flexible mounting
• Unique detection algorithm and advanced area settings
• Automatic area setting and configurable detection parameters

Applications

• Protection of skylights, walls, paintings and display assets
• Secure shelving and high-value storage areas
• Warehouses, museums/galleries, data centres, airports, commercial sites, banks

Integration and benefits

• Integrates with security and alarm systems to provide precise event detection
• Reduces false alarms and complements video analytics by providing reliable detection data
• Discreet design with custom-paint option for aesthetic integration in indoor environments
• PoE support and standard network protocols for easy system integration

Technical specifications

• Product range: LiDAR REDSCAN series
• Model: RLS-2020I
• Detection method: Laser (LiDAR)
• Detection coverage: 20 x 20 m (approx. 65 x 65 ft.), 95°
• Detectable speed / response: 0.25° / within 75 ms to 15 min (indoor/outdoor mode); 0.25° / within 25 ms (indoor throw-in mode); 0.125° / within 100 ms to 15 min (indoor high resolution mode)
• Power input: 10.5 to 30 VDC, PoE (IEEE802.3af/at compliant)
• Current draw: 500 mA max. (12 VDC), 250 mA max. (24 VDC), 6 W max. (PoE)
• Alarm period: Approx. 2 second delay timer
• Operation temperature: -40 to 50°C (-40 to 140°F)
• IP rating: IP66
• Installation method: Indoor
• Mounting height: 2 m (6.7 ft.) or higher
• Weight: 1.0 kg (2.2 lb)
• Dimensions: 146 x 160 x 160 mm (5.8 x 6.3 x 6.3 in)
• Laser protection class: Class 1
• Outputs / interfaces: 3 configurable alarm outputs (selectable N.O./N.C.)
• Protocol: TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, FTP, SNMPv1/v2c/v3, ICMP, ARP
• Communication port: Ethernet RJ-45 10BASE-T / 100BASE-TX (Auto negotiation)
