Intrusion detector AP-360BR

motionpassive infraredPIR

Overview

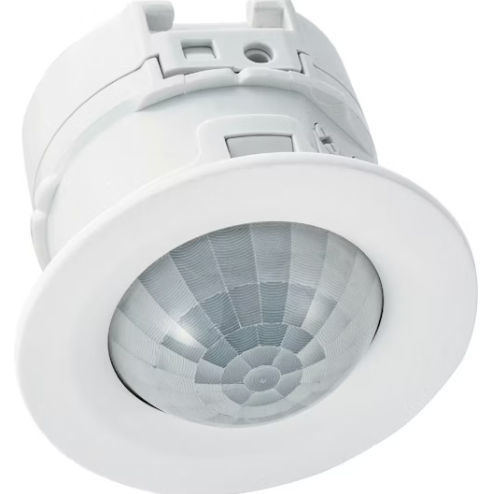

Part of the AP series of recessed-mount indoor PIR sensors, the AP-360BR is a compact, discreet ceiling-mount wireless detector providing 360° volumetric detection. Suitable for lobbies, offices and rooms, it is designed for intrusion detection, lighting control and building/home automation.

Key features

• Recessed wireless PIR for motion detection and smart automation
• 360° volumetric ceiling coverage
• Recommended mounting height: 2.5–4.5 m
• Supports recessed installation or mounting in an 86-type back box
• Adjustable detection sensitivity and selectable battery-save timer

Energy saving
The detector supports a battery-saving timer with selectable durations (default: 120 seconds; alternative: 5 seconds) to optimize battery life.

Applications

• Lobbies and entrance halls
• Offices and meeting rooms
• Residential rooms and building automation

Technical specifications

• Product range: AP Series
• Model code: AP-360BR(C)
• Detection method: Passive infrared (PIR)
• Detection coverage: ø6 m (ø20’) at mounting height 4.5 m (14’9”)
• Detectable speed: 0.3–3.0 m/s (1–9.8 ft/s)
• Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2 ft/s); 3 levels adjustable
• Power input: 2.7–3.6 V DC (CR123A battery)
• Current draw: 3 V DC — Stand-by: 10 μA, Max: 4 mA
• Alarm output (R): N.O./N.C., 3.6 V DC, 10 mA max.
• Trouble output (DQ): N.C., 28 V DC, 100 mA max. (contact opens when casing removed)
• LED indicator: Warm-up on power-on: blinking; Stand-by: off; Alarm: solid on
• Operating temperature: -20 to +50 °C (-4 to +122 °F)
• Relative humidity: < 95%
• Installation: Indoor (recessed or 86-type box)
• Recommended mounting height: 2.5–4.5 m
• Weight: 50 g (1.76 oz)
