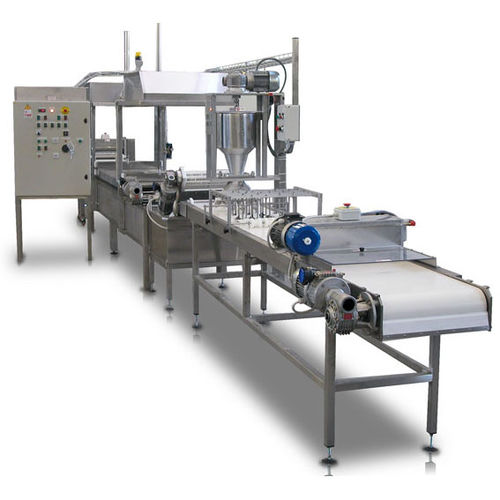

Cannelloni production line CN/3000

lasagna

Each machine is fitted with a speed regulator that allows the syncronization of the line and the variation of the productive process parameters (cooking time, cannelloni size, etc..) The Extruder or Automatic Sheeter makes the dough and forms the pasta sheet, that falls then into a conveyor belt and is transported to the cooker. Inside the cooker water is heated through a heat generator at an optimal temperature (always less than 100 C.) This generator is able to move inside the cooker. The belt speed can be varied, changing this way the cooking time. There are two stainless steel belts one on top of the other, that connect with the cover once they are inmersed. The cover-belts group can be lifted through an automatic device in order to facilitate cleaning. It is also Machine for the production of ready meals lasagna and cannellonipossible to lift only the cover. The introduction of two extractor hoods, one at the entrance and one at the exit of the pasta sheet , is without a doubt an important innovation. This system allows not to take vapor from the bin but rather to keep the absolute quantities constantly during the whole productive cicle. The two cooking belts take the sheet towards the exit of the bin, and pass it through the washing and cooling bin. This last one contains water at room temperature.
