Water hose 2648N
polyamideultra high-pressurecleaning

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
polyamide
Applications
ultra high-pressure, cleaning, construction
Other characteristics
wire-reinforced
Inner diameter

19.8 mm, 25 mm (0.78 in)

Outer diameter

33.7 mm, 40.8 mm (1.327 in)

Pressure

Max.: 1,600 bar (23,206.038 psi)

Min.: 0 bar (0 psi)

Temperature

Max.: 70 °C (158 °F)

Min.: -10 °C (14 °F)

Description

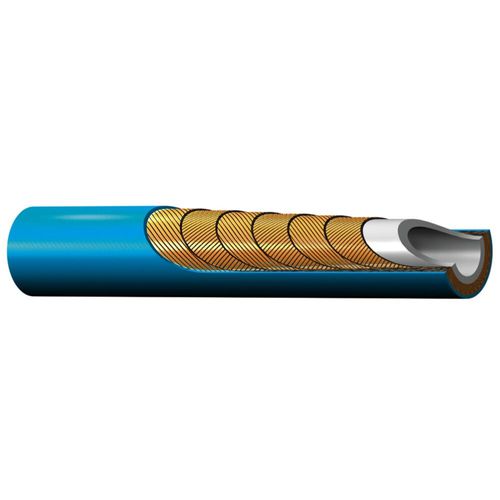

Parker Polyflex High Pressure 2648N Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial cleaning • Shipbuilding industries • Construciton industries Features/Benefits: • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Design factor : 2.5:1 Applications: • Industrial cleaning • Compression forming (hydroforming) • For working pressure up to 160 MPa (23.200 psi) Technical Specifications: • Core tube: Polyamide • Pressure reinforcement: Six spiral layers of maximum tensile steel wire • Cover: Polyamide • Standard colour: blue • Temperature range: -10°C up to +70°C Weight 1,53 - 2,08 lb/ft 2,28, 3,1 kg/m Nominal Hose Inside Diameter 20, 25 mm Design Factor 2 Maximum Operating Temperature +158 °F +70 °C Minimum Operating Temperature -10 °C 14 °F Hose Outside Diameter 1,33 - 1,61 inch 33,7, 40,8 mm Minimum Bend Radius 13,78 - 15,75 inch Maximum Operating Pressure 150 - 160 MPa 1500 - 1600 bar 23200, 21750 psi Specifications Met DIN EN 1829-9 Hose I.D. (size) -12, -16 Hose Inside Diameter 19,8, 25 mm 3/4, 1 inch
