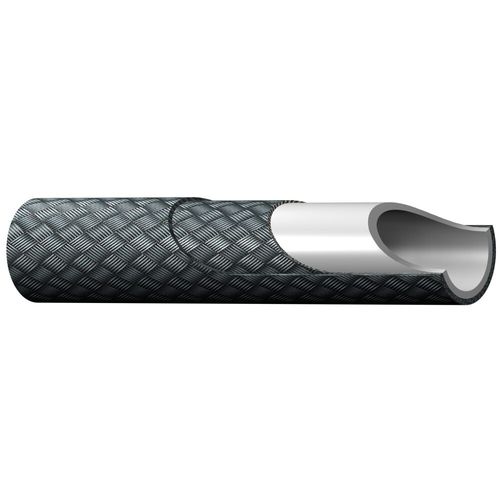

Hydraulic hose 2033T series
for chemical productsPTFEhigh-temperature

hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic, for chemical products
Material
PTFE
Applications
high-temperature, construction, transfer, for chemical applications, FDA, for hydraulic systems, spray
Other characteristics
braided, stainless steel-braided
Inner diameter

Max.: 25 µm

Min.: 6.3 µm

Outer diameter

Max.: 31 mm
(1.22 in)

Min.: 11 mm
(0.433 in)

Pressure

Max.: 275 bar
(3,988.538 psi)

Min.: 110 bar
(1,595.415 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -50 °C
(-58 °F)

Description

Parker 2033T Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for today's demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production. Feature/Benefits: • Increased working pressure due to two braided layers of stainless steel wire • Suitable for high temperatures • Inert to virtually all hydraulic and chemical fluids Applications: • Medium pressure service for use with hydraulic fluids at high temperatures and aggressive chemicals in the chemical industry, surface engineering, 2-component systems. • The core tube material conforms to FDA 21 CFR177.1550. Construction: • Core Tube: Polytetrafluoroethylene • Pressure reinforcement: Two braided layers of stainless steel wire • Temperature range: -50°C up to +150°C permanent temperature +230°C at working pressures up to 2 MPa Notes: • Not recommended for dynamic applications. Weight 0,15 - 0,54 lb/ft 0,23, 0,26, 0,34, 0,47, 0,53, 0,69, 0,81 kg/m

Catalogs

No catalogs are available for this product.

See all of Parker Polyflex Division - Europe‘s catalogs
