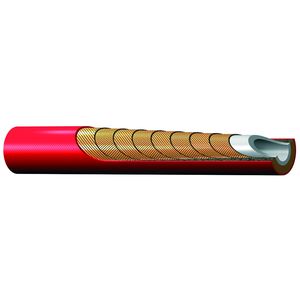

Water hose ESH
thermoplastichigh-pressurecleaning

water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
thermoplastic
Applications
high-pressure, cleaning
Other characteristics
fabric-braided
Inner diameter

12.7 mm, 31.9 mm (0.5 in)

Outer diameter

Max.: 36.5 mm (1.437 in)

Min.: 20.6 mm (0.811 in)

Pressure

Max.: 250 bar (3,625.943 psi)

Min.: 0 bar (0 psi)

Temperature

Max.: 50 °C (122 °F)

Min.: -10 °C (14 °F)

Description

Parker Polyflex High Pressure ESH Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial cleaning Features/Benefits: • Prefabricated assemblies and long service life • Available as bulk hose on a drum • Excellent operator safety as a result of highest quality standards which are met • Design factor : 2.5:1 Applications: • Hydrodynamic cleaning sewers • For working pressure up to 25 MPa (3625 psi) Technical Specifications: • Core tube: Polythylene compound, grey • Pressure reinforcement: Two braided layers of high tensile synthetic yarn • Cover: Polyurethylane compound • Standard colour: Yellow • Temperature range: -10°C up to +50°C Nominal Hose Inside Diameter 12, 20, 25, 32 mm Design Factor 2 Maximum Operating Pressure 250 bar 20, 25 MPa 2900, 3625 psi Minimum Operating Temperature -10 °C 14 °F Weight 0,15 - 0,6 lb/ft 0,23, 0,37, 0,59, 0,89, 0,24, 0,4, 0,6, 1 kg/m
