Hydraulic hose 2245N series
polyamidehigh-pressuretransfer

hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
polyamide
Applications
high-pressure, transfer, for petrochemical applications
Other characteristics
chemical-resistant, braided, spiral
Inner diameter

Max.: 25 mm
(0.984 in)

Min.: 6.3 mm
(0.248 in)

Outer diameter

Max.: 34 mm
(1.339 in)

Min.: 12.5 mm
(0.492 in)

Pressure

Max.: 450 bar
(6,526.698 psi)

Min.: 275 bar
(3,988.538 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

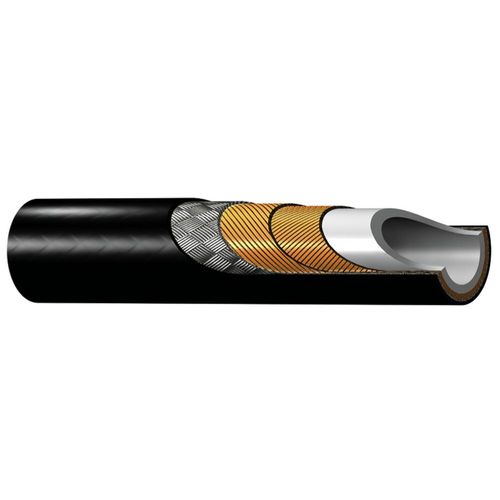

Parker 2245N Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for todays demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production. Markets: • Industrial Hydraulics • Mobile Features/Benefits: • High working pressures for large sizes • Excellent chemical resistance due to polyamide core tube Applications: • High pressure service for general industrial and mobile hydraulic applications as well as with gases. • Usable for a wide variety of fluids due to the polyamide core tube. • For working pressure up to 45 MPa (6.525 psi) Technical Specifications: • Core tube: Polyamide • Pressure reinforcement: Two spiral layers of high tensile steel wire, one braided layer of steel wire • Cover: Polyurethane; -10 and above: polyamide • Colour: black • Temperature range: -40°C up to +100°C (short term +120°C) for petroleum or synthetic hydraulic fluids. Notes: • For pinpricked hose please add “-P”, e.g. 2245N-04V00-P.
