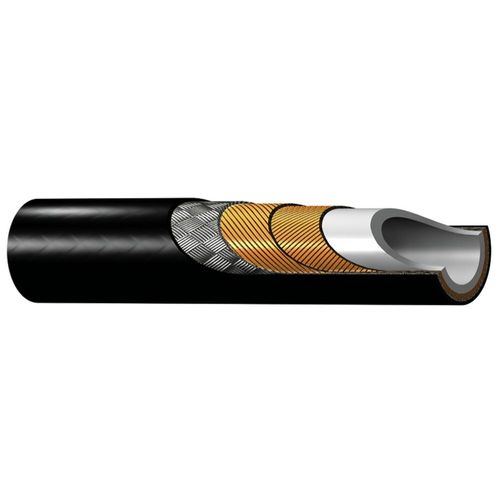

Water hose 2244N seriespolyamidehigh-pressurefor hydraulic systems
Add to favorites
Compare this product
Characteristics
- Use
- for water
- Material
- polyamide
- Applications
- high-pressure, construction, cleaning, for marine applications, for hydraulic systems
- Other characteristics
- standard, double-layer, steel-braided
- Inner diameter
Max.: 32.2 mm
(1.268 in)Min.: 3.9 mm
(0.154 in)- Outer diameter
Max.: 44.2 mm
(1.74 in)Min.: 9.6 mm
(0.378 in)- Pressure
Max.: 880 bar
(12,763.321 psi)Min.: 275 bar
(3,988.538 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Parker Polyflex 2244N Hoses High Pressure Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator.
Markets:
• Industrial cleaning
• Marine cleaning
• Water jetting (only hoses > 2000 bar)
Features/Benefits:
• Excellent handling increases operator efficiency and long service life
• Superior safety standards are applied for the benefit of the operator
• Design factor: 2.5:1
Applications:
• Industrial cleaning
• general Industrial use
• Water jetting applications
Technical Specifications:
• Core tube: Polyamide
• Pressure reinforcement: Two spirals layers, one braideed layer of high tensile steel wire
• Cover: Playurethane, DN32: Polyamide
• Standard colour: black
