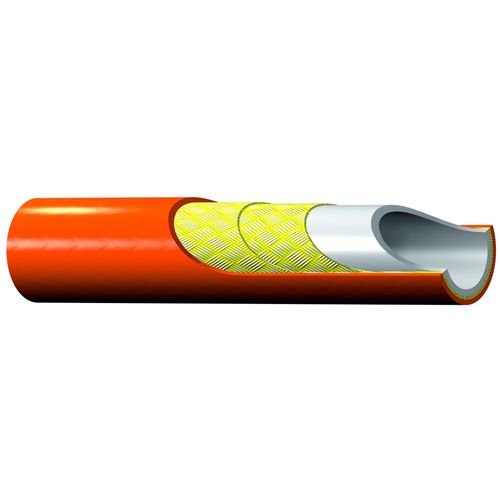

Water hose 2022N series

aramidpolyamideTPU

Parker Polyflex High Pressure 2022N Aramid Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial • Oil & Gas Feature/Benefits: • Replaces steel pipe where flexibility is important • Excellent operator safety as a result of highest quality standards which are met • Design factor: 4:1 Applications: • High Pressure Application where non-conductivity is required Technical Specifications: • Core tube: Polyamide 11, methanol washed • Pressure reinforcement: Two braided layers of high tensile aramid fibre • Cover: Sea water resistant TPU • Standard colour: orange Weight 0,08, 0,09, 0,1, 0,16, 0,11, 0,23 lb/ft 0,14, 0,24 kg/m
