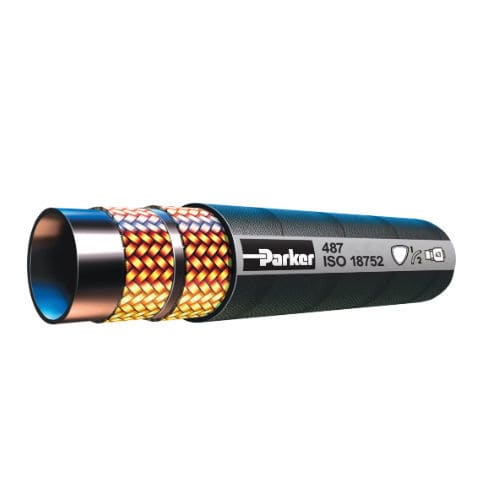

Hydraulic hose 487 series

for mineral oilfor oilsteel

Overview
Parker GlobalCore 487 is a hydraulic hose designed for constant working pressure applications up to 4000 psi (28 MPa). The construction provides low force-to-flex and a broad size range (-4 to -32) with multiple cover options (Standard, ToughCover, SuperTough, Critical Protection) to match field and OEM requirements.

Key features

• Constant working pressure: 4000 psi (28 MPa)
• Low force-to-flex design for improved handling
• Multiple reinforcement options: 2 braided steel wire, 4 or 6 spiral wire depending on size
• Cover variants for abrasion and critical protection environments
• Compatible with 43 and 77 series fittings

Technical specifications

• Minimum operating temperature: -40 °F / -40 °C
• Maximum operating temperature: 100 °C standard cover; 125 °C for TC, ST & CP covers (212 °F / 257 °F)
• Maximum operating pressure: 280 bar / 4000 psi / 28 MPa
• Media: lubricants, petroleum hydraulic fluids
• Specifications met: ISO 18752; MSHA for TC, ST & CP covers only
• Compatible fittings: 43 Series, 77 Series
• Weight: 0.30 to 6.47 kg/m (0.20 to 4.35 lb/ft)
• Inside diameter: 0.52 to 2.65 in (13.1 to 67.3 mm)
• Outside diameter: 0.52 to 2.65 in (13.1 to 67.3 mm)
• Hose inner tube: synthetic rubber
• Cover material: synthetic rubber
• Reinforcement: 2 braids of steel wire (sizes -4 to -12); 4 spirals of wire (sizes -16 to -24); 6 spirals of wire (size -32)
• Size range: -4 to -32
• Minimum bend radius: 2 to 12-1/2 in (50 to 320 mm)

Product variants

• 487-4 — Hose I.D.: -4 — Standard Cover
• 487-6 — Hose I.D.: -6 — Standard Cover
• 487-8 — Hose I.D.: -8 — Standard Cover
• 487-10 — Hose I.D.: -10 — Standard Cover
• 487-12 — Hose I.D.: -12 — Standard Cover
• 487-16 — Hose I.D.: -16 — Standard Cover
• 487-20 — Hose I.D.: -20 — Standard Cover
• 487-24 — Hose I.D.: -24 — Standard Cover
• 487-32 — Hose I.D.: -32 — Standard Cover
• 487TC-4 — Hose I.D.: -4 — ToughCover
• 487TC-6 — Hose I.D.: -6 — ToughCover
• 487TC-8 — Hose I.D.: -8 — ToughCover
• 487TC-10 — Hose I.D.: -10 — ToughCover
• 487TC-12 — Hose I.D.: -12 — ToughCover
• 487TC-16 — Hose I.D.: -16 — ToughCover
• 487TC-20 — Hose I.D.: -20 — ToughCover
• 487TC-24 — Hose I.D.: -24 — ToughCover
• 487TC-32 — Hose I.D.: -32 — ToughCover
• 487ST-4 — Hose I.D.: -4 — SuperTough
• 487ST-6 — Hose I.D.: -6 — SuperTough
• 487ST-8 — Hose I.D.: -8 — SuperTough
• 487ST-10 — Hose I.D.: -10 — SuperTough
• 487ST-12 — Hose I.D.: -12 — SuperTough
• 487ST-16 — Hose I.D.: -16 — SuperTough
• 487ST-20 — Hose I.D.: -20 — SuperTough
• 487ST-24 — Hose I.D.: -24 — SuperTough
• 487ST-32 — Hose I.D.: -32 — SuperTough
• 487CP-4 — Hose I.D.: -4 — Critical Protection
• 487CP-6 — Hose I.D.: -6 — Critical Protection
• 487CP-8 — Hose I.D.: -8 — Critical Protection
• 487CP-12 — Hose I.D.: -12 — Critical Protection
• 487CP-16 — Hose I.D.: -16 — Critical Protection

Applications

• Agricultural equipment
• Construction equipment
• Forestry machinery
• Hydraulic systems
• Material handling
• Transportation

Notes
Confirm required cover type and fitting series at order. For MSHA-compliant options specify TC, ST or CP covers. Contact Parker representative for detailed dimension tables and bend-radius guidance.
