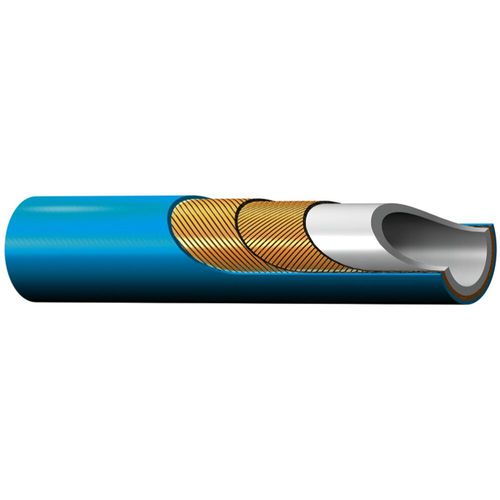

Water hose 2248D
polyamidehigh-pressurecleaning

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
polyamide
Applications
high-pressure, cleaning, marine
Other characteristics
reinforced, spiral wire
Inner diameter

4 mm, 4.9 mm, 8.1 mm (0.157 in)

Outer diameter

7.9 mm, 9.5 mm, 13.4 mm (0.311 in)

Pressure

3,010 bar (43,656.359 psi)

Temperature

Min.: -10 °C (14 °F)

Max.: 70 °C (158 °F)

Description

Parker Polyflex High Pressure 2448D Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial • Marine • Water jet cutting (only hoses > 2000 bar) • All markets requiring pressures over 700 bar for their cleaning and cutting applications Features/Benefits: • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Design factor >2:1 Applications: • Tube cleaning • Marine cleaning • For working pressure up to 150 MPa (21.750 psi) Technical specifications: • Core tube: Polyoxymethylene • Pressure reinforcement: Two spiral layers of high tensile steel wire • Cover: Polyamide • Standard colour: blue • Temperature range: -10°C up to +70°C Weight 0,07 - 0,17 lb/ft 0,1, 0,14, 0,25 kg/m Nominal Hose Inside Diameter 4, 5, 8 mm Design Factor 2 Maximum Operating Pressure 301 MPa 3010 bar 21750, 20300, 14500 psi Maximum Operating Temperature +158 °F +70 °C Minimum Operating Temperature -10 °C 14 °F Hose Outside Diameter 0,31 - 0,53 inch 7,9, 9,5, 13,4 mm Minimum Bend Radius 2,95 - 4,72 inch Specifications Met DIN EN 1829-2 Hose I.D. (size) -25, -3, -5

Other Parker Polyflex Division - Europe products

Polyflex Division Europe
