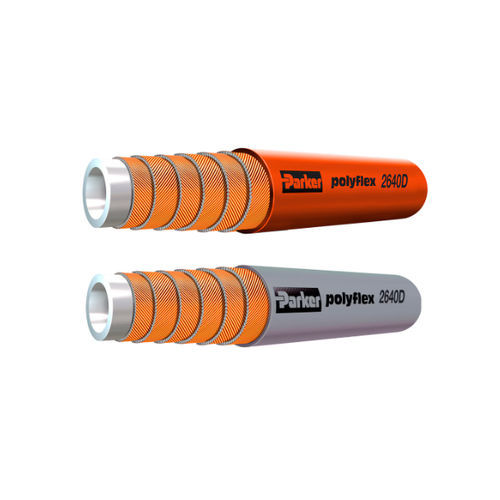

Water hose 2640D series
for chemical productspolyamidesteel

Water hose - 2640D series - Parker Polyflex Division - Europe - for chemical products / polyamide / steel
Water hose - 2640D series - Parker Polyflex Division - Europe - for chemical products / polyamide / steel
Add to favorites
Compare this product

Characteristics

Use
for water, for chemical products
Material
steel, polyamide
Applications
high-pressure, cleaning, for cleaners
Norms
DIN
Other characteristics
reinforced, wire-reinforced, spiral wire
Inner diameter

Max.: 4.8 mm
(0.189 in)

Min.: 4 mm
(0.157 in)

Outer diameter

Max.: 12.9 mm
(0.508 in)

Min.: 12 mm
(0.472 in)

Pressure

Max.: 2,800 bar
(40,610.567 psi)

Min.: 2,500 bar
(36,259.434 psi)

Temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Description

Short description
High-pressure water jet hose 2640D designed for waterjet cutting and ship washdown; suitable for high-pressure hydraulics and waterblasting. Rated within the operating range 2500–2800 bar (35,230–40,600 psi).

Available variants
  • 2640D-025V35 — Hose I.D.: 5/32 inch (4.0 mm)
  • 2640D-03V37 — Hose I.D.: 3/16 inch (4.8 mm) — Obsolete - see PFX25-03


Technical specifications
  • Design factor: 2.5
  • Cover color: Gray (3/16 in), Orange (5/32 in)
  • Media: Chemicals, water
  • Standards: DIN 1829-2
  • Compatible fitting: 2X Series
  • Weight: 0.12–0.44 kg/m (0.29–0.41 lb/ft)
  • Operating temperature: -10 °C to 70 °C (14 °F to 158 °F)
  • Inside diameter: 4.0–4.8 mm (5/32–3/16 in)
  • Maximum operating pressure: 2500–2800 bar (35,230–40,600 psi)
  • Applications: High-pressure hydraulics; waterblasting (waterjet cutting, ship washdown)
  • Inner tube material: Polyoxymethylene (POM)
  • Cover material: Polyamide (PA)
  • Reinforcement: 6 spirals of maximum tensile steel wire
  • Minimum bend radius: 140–175 mm (5.5–6.69 in)
  • Outside diameter: 12.0–12.9 mm (0.470–0.510 in)
