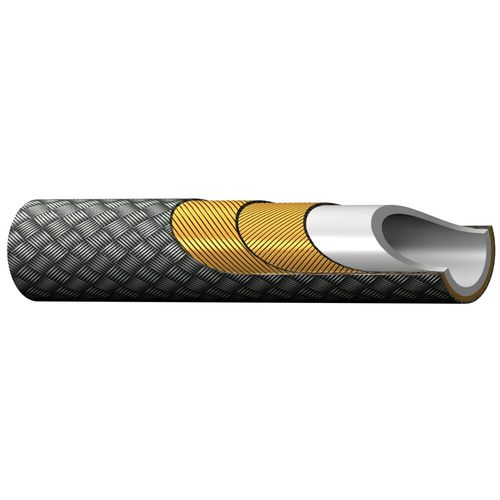

Hydraulic hose 2246F series
for gasPTFEhigh-pressure

hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic, for gas
Material
PTFE
Applications
high-pressure, construction, transfer, for chemical applications, for hydraulic systems
Other characteristics
spiral wire, steel-braided
Inner diameter

Max.: 25 mm
(0.984 in)

Min.: 6.3 mm
(0.248 in)

Outer diameter

Max.: 32.5 mm
(1.28 in)

Min.: 11.4 mm
(0.449 in)

Pressure

Max.: 41,500,000 Pa
(6,019.066 psi)

Min.: 21,000,000 Pa
(3,045.792 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -50 °C
(-58 °F)

Description

Parker 2246F Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for todays demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production. Markets: • Industrial • Mobile Feature/Benefits: • Without hose cover • Inert to virtually all hydraulic and chemical fluids Applications: • Suitable for applications with additional heating elements • Hotmelt applications in the automotive industry Construction: • Core Tube: Fluoroethylenepropylene • Pressure reinforcement: Two spiral layers and one braided layer of high tensile steel wire Notes: • Not recommended for applications where extreme pulsations are encountered.
