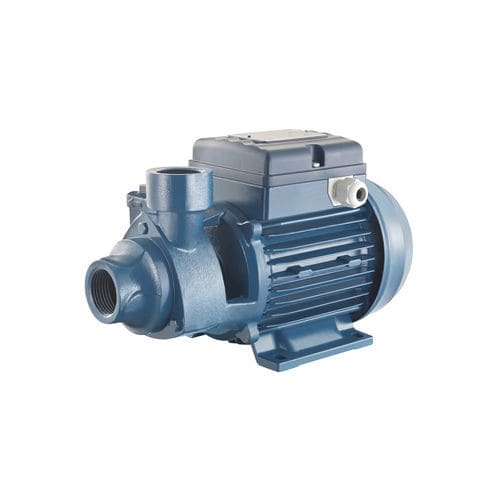

Water pump PM serieswith electric motorself-primingperipheral
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- peripheral
- Mobility
- stationary
- Domain
- industrial
- Voltage
- 400 V, 230 V
- Other characteristics
- suction, small
- Flow
Max.: 50 l/min
(13.2086 us gal/min)Min.: 5 l/min
(1.32086 us gal/min)- Head
Max.: 79.2 m
(259'10" )Min.: 5 m
(16'04" )- Power
0.37 kW, 0.5 kW, 0.74 kW
(0.5 hp, 0.68 hp, 1.01 hp)- Fluid temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Length
Max.: 286 mm
(11 in)Min.: 260 mm
(10 in)- Width
120 mm, 135 mm
(4.72 in, 5.31 in)- Height
158 mm, 172 mm
(6.22 in, 6.77 in)- Weight
Max.: 11 kg
(24.25 lb)Min.: 6.5 kg
(14.33 lb)
Description
Peripheral positive displacement pump with front suction (PM) and side suction with self-priming system (PM A) for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.
