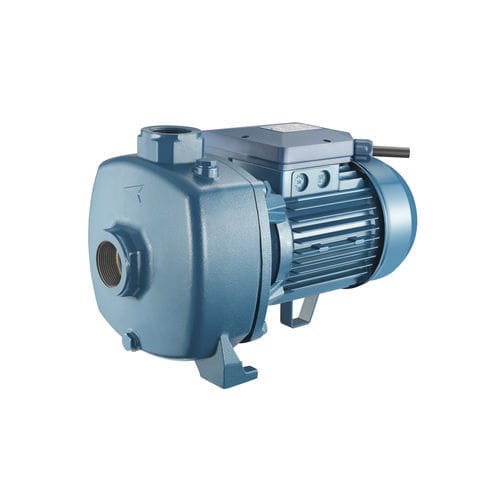

Water pump MB serieswith electric motorself-primingimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- impeller
- Mobility
- stationary
- Domain
- industrial
- Applications
- for industrial applications
- Voltage
- 400 V, 230 V
- Other characteristics
- compact
- Flow
Max.: 180 l/min
(47.55097 us gal/min)Min.: 40 l/min
(10.56688 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 45.9 m
(150'07" )Min.: 23.3 m
(76'05" )- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
385 mm
(15 in)- Width
205 mm
(8.07 in)- Height
242 mm
(9.53 in)- Weight
Max.: 23.5 kg
(51.81 lb)Min.: 21.5 kg
(47.4 lb)
Description
Two impeller compact centrifugal pump for constructing pressurisation systems for civil and industrial plant: guarantee good ratio between pressure and flow rate.
