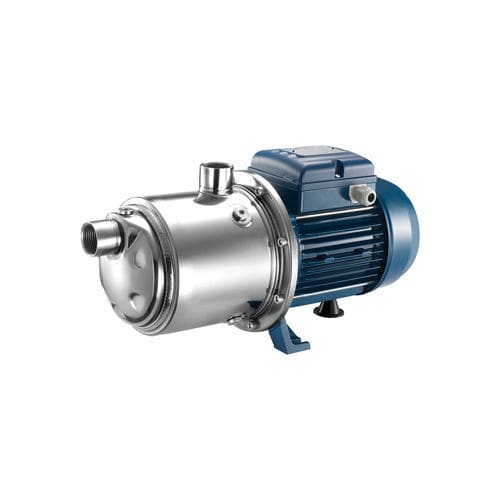

Centrifugal pump ULTRA SA serieswaterairwith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, air
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- irrigation, treatment, washing, for industrial applications
- Material
- stainless steel
- Voltage
- 400 V, 380 V
- Other characteristics
- heating
- Flow
Max.: 140 l/min
(36.98409 us gal/min)Min.: 10 l/min
(2.64172 us gal/min)- Pressure
7 bar
(101.526 psi)- Head
Max.: 62 m
(203'04" )Min.: 13 m
(42'07" )- Power
Max.: 1.85 kW
(2.52 hp)Min.: 0.6 kW
(0.82 hp)- Fluid temperature
Max.: 110 °C
(230 °F)Min.: -5 °C
(23 °F)- Length
405 mm, 428 mm, 452 mm, 514 mm
(16 in, 17 in, 18 in, 20 in)- Width
178 mm, 201 mm
(7.01 in, 7.91 in)- Height
190 mm, 203 mm, 211 mm
(7.48 in, 7.99 in, 8.31 in)- Weight
10 kg, 12.5 kg, 15.5 kg
(22.05 lb, 27.56 lb, 34.17 lb)
Description
Stainless steel multistage horizontal pump. Suitable for clean water, pressurizing system: irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system.
