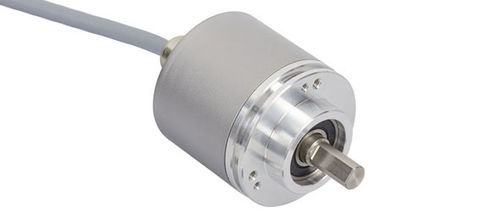

Incremental rotary encoder UTD-IPT00-XXXXX-L060-AAW

magneticsolid-shaftflange

Product overview
The POSITAL IXARC programmable incremental encoder UTD-IPT00-XXXXX-L060-AAW provides configurable PPR, selectable output types (RS422/TTL or Push-Pull HTL), a clamp flange ø58 mm and a solid stainless-steel shaft ø6 mm. Designed for industrial applications requiring compact dimensions, high frequency response and IP65/IP66 protection levels.

Interface
Programmable incremental interface with PPR range 1–32768. Configurable parameters: pulses per revolution (PPR), output type (Push-Pull HTL or RS422/TTL) and counting direction. Configuration via UBIFAST Configuration Tool (v1.6.10 or newer). Note: PPR >16384 requires factory adjustment during production.

Outputs
Output driver: RS422 (TTL) or Push-Pull (HTL). Maximum frequency response up to 1 MHz. Maximum switching current 50 mA per channel. Typical output levels: high >4 V, low <0.5 V (refer to supply voltage ranges for HTL levels).

Electrical data
Supply voltage 4.75–30 VDC. Current consumption ≤60 mA @5 V, ≤30 mA @10 V, ≤25 mA @24 V. Power ≤1.0 W. Start-up time <1 s. Includes reverse polarity and short-circuit protection. EMC: DIN EN 61000-6-4 / DIN EN 61000-6-2.

Sensor
Magnetic sensing technology. INL accuracy ±0.0878° (≤12 bit). Default sense: clockwise shaft movement (viewed from shaft front). Duty cycle ≈180° ±12°, phase angle ≈90° ±6° at speeds >100 RPM.

Environmental specifications
Shaft protection class IP65, housing IP66/IP67. Operating temperature range from -30 °C (fixed) to +80 °C. Humidity up to 98% RH without condensation.

Mechanical data
Housing: steel with wet coating (RAL 9006 White Aluminium) and cathodic corrosion protection (>720 h salt spray). Flange: clamp ø58 mm (aluminum). Shaft: solid stainless steel ø6 mm, length 10 mm. Max shaft loads: axial 40 N, radial 110 N. Length 41.7 mm, weight 1275 g. Max mechanical speed ≤12000 1/min. Shock and vibration ratings per EN 60068 series.

Electrical connection
Axial cable exit, standard cable length 10 m (PVC, Ø6 mm), wire cross section 0.14 mm² (AWG 26). Minimum bend radius: 46 mm fixed, 61 mm flexing.

Certification & lifecycle
Approvals: CE. Product status: New.

Connection plan (signal colours)

• A: Green
• /A: Yellow
• B: Gray
• /B: Pink
• Z: Blue
• /Z: Red
• Power Supply: Brown
• GND: White
• Shielding: Shield

Notes & documentation
Pulse diagram, dimensional drawings and configuration instructions available on the product page. UBIFAST tool required for programmable settings above defaults.

Technical specifications

• Product family: POSITAL IXARC programmable incremental encoder
• Model: UTD-IPT00-XXXXX-L060-AAW
• Outputs: RS422 (TTL) or Push-Pull (HTL)
• Programmable PPR: 1–32768 (PPR>16384 requires factory adjustment)
• Supply voltage: 4.75–30 VDC
• Max frequency response: 1 MHz
• Protection: Shaft IP65, Housing IP66/IP67
• Shaft: solid ø6 mm, length 10 mm, stainless steel
• Flange: clamp ø58 mm (aluminum)
• Cable: axial exit 10 m PVC, Ø6 mm
