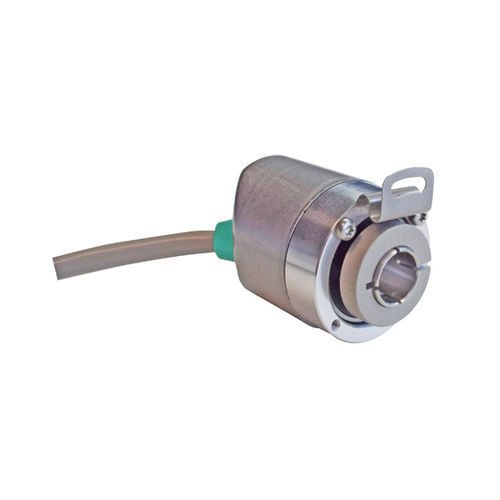

Incremental rotary encoder UTD-IPT00-XXXXX-V8S0-5TW

magnetichollow-shaftblind-shaft

Product overview
Programmable incremental encoder POSITAL IXARC, model UTD-IPT00-XXXXX-V8S0-5TW. Blind hollow shaft (non-through) Ø8 mm, available flange options Ø36 mm / Ø42 mm. Configurable outputs: RS422 (TTL) or Push-Pull (HTL). Protection class IP64/IP65 depending on configuration.

Interface
Interface type: programmable incremental. Programming functions: PPR (1–32768), output selection (HTL/RS422), counting direction. Configuration via UBIFAST Configuration Tool (version 1.6.10 or newer). Note: PPR >16384 requires factory adjustment.

Outputs
Output driver: RS422 (TTL) or Push-Pull (HTL). Maximum frequency response: 1 MHz. Maximum switching current: 50 mA per channel. Voltage levels: HTL high >4 V (@4.75–9 V supply) or >V-3 V (@9–30 V); low <0.5 V. RS422 high >4 V; low <0.5 V.

Electrical data
Supply voltage: 4.75–30 VDC. Current consumption: ≤60 mA @5 V, ≤30 mA @10 V, ≤25 mA @24 V. Power consumption ≤1.0 W. Start-up time <1 s. Min. load resistance 120 Ω. Reverse polarity and short-circuit protection included. EMC: DIN EN 61000-6-4 (emissions), DIN EN 61000-6-2 (immunity). MTTF: 280 years @ 40 °C.

Sensor
Technology: magnetic. INL accuracy: ±0.0878° (≤12 bit). Default signal sense: clockwise shaft movement (front view). Duty cycle: 180° ±12° (speed >100 RPM). Phase angle: 90° ±6° (speed >100 RPM).

Environmental specifications
Protection class (shaft & housing): IP65. Operating temperature: fixed -30 °C to +80 °C; flexible -5 °C to +80 °C. Humidity: up to 98% RH, no condensation.

Mechanical data
Housing: steel, zinc plated. Flange: aluminum, blind hollow options Ø36/Ø42 mm. Shaft: blind hollow, depth 18 mm, diameter Ø8 mm, stainless steel V2A (1.4305/303). Friction torque ≤3 Ncm @20 °C. Max mechanical speed ≤12,000 1/min. Shock/vibration ratings per EN standards. Length 50.2 mm. Weight 805 g. Max static axial/radial misalignment: ±0.3 mm / ±0.5 mm.

Electrical connection
Cable exit: axial or radial. Standard cable: PVC, 5 m, 0.14 mm² (AWG26). Cable diameter 6 mm. Minimum bend radius: 46 mm fixed, 61 mm flexing.

Certification
Approvals: CE and cULus.

Product life cycle
Lifecycle status: New.

Connection plan (signal → color)
A → Green
/A → Yellow
B → Gray
/B → Pink
Z → Blue
/Z → Red
Power Supply → Brown
GND → White
Shielding → Shield

Pulse diagram & dimensional data
Pulse diagram for channel phasing (A, /A, B, /B, Z, /Z) and dimensional drawings/3D models available for mounting, flange options and cable exit.

Accessories (examples)

• 10026904 - UBIFAST Configuration Tool
• 10035191 - AP20-00 Counter
• 10035203 - DiMod Counter (Relay o/p)
• 10070674 - Clamping Ring V12

Technical specifications

• Model: UTD-IPT00-XXXXX-V8S0-5TW
• Brand: POSITAL
• Interface type: programmable incremental (PPR 1–32768)
• Outputs: RS422 (TTL) or Push-Pull (HTL), max 1 MHz
• Supply voltage: 4.75–30 VDC
• Current consumption: ≤60 mA @5V
• Shaft: blind hollow Ø8 mm, depth 18 mm; stainless steel
• Flange: blind hollow Ø36 / Ø42 mm, aluminum
• Housing: steel, zinc plated; length 50.2 mm
• Protection: IP65 (shaft & housing)
• Operating temp.: -30 °C to +80 °C
• Cable: 5 m PVC, 0.14 mm² (AWG26)
• Approvals: CE, cULus
