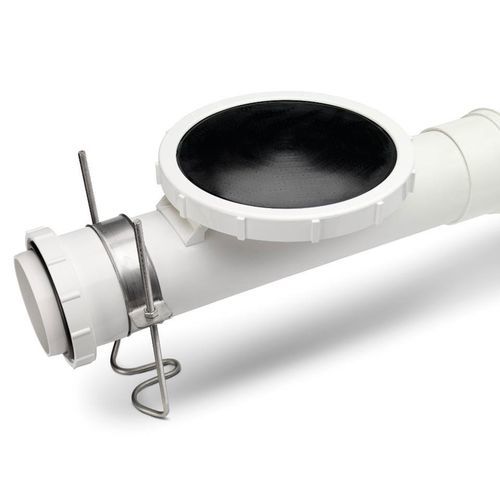

Integrated air diffuser SILVER II

Product overview
Membrane diffusers of the Sanitaire SILVER II series are a fine-bubble, deep-aeration solution designed for activated sludge and industrial wastewater treatment. The EPDM membranes are engineered with a unique slot pattern and profile to produce a uniform bubble field and maximize oxygen transfer efficiency. Durable, high-grade EPDM and optimized design deliver long service life—typically 10 years or more depending on operating conditions.
The integrated check valve enables reliable zone isolation for air-on/air-off control, reducing energy use and simplifying maintenance.

Sanitaire diffuser bases and supports
Sanitaire diffuser bases are engineered for quick installation and provide the mechanical strength required to support SILVER II membranes and ceramic discs. Patented keyed connectors ensure a secure, leak-resistant link between diffuser piping and the air manifold, compensating for thermal expansion and resisting water hammer and dynamic loads.
Stainless steel bases and threaded, height-adjustable supports offer corrosion resistance and precise grate-level adjustment; reinforced support variants are available for high-velocity zones or areas with mixers.

Applications and advantages

• Fine-bubble deep aeration for activated sludge plants and industrial wastewater treatment
• High oxygen transfer efficiency and reduced operating costs
• Ceramic diffuser option for aggressive or highly corrosive wastewaters
• Long membrane service life with high-class EPDM elastomer
• Integrated check valve for reliable air-on/air-off zone control

Technical specifications

• Model family: Sanitaire SILVER II
• Membrane material: high-class EPDM elastomer
• Membrane design: unique slot pattern and profile for uniform bubble dispersion
• Expected membrane service life: 10+ years (dependent on operating conditions)
• Integrated check valve for zone shut-off (air-on/air-off)
• Ceramic diffuser option available for aggressive/corrosive wastewater
• Diffuser bases: corrosion-resistant stainless steel
• Patented keyed connectors: compensate thermal expansion and resist water hammer
• Supports: threaded, highly adjustable for grate leveling; reinforced versions for high-velocity and mixer zones
