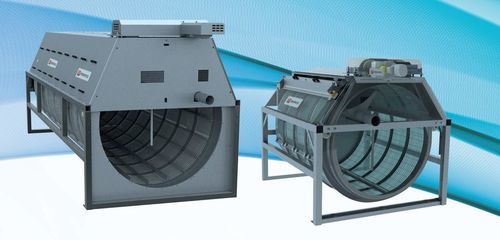

Gravity micro-filtration unit TYP seriesbeltdrummechanical
Add to favorites
Compare this product
Characteristics
- Technology
- gravity, belt, drum, mechanical
- Designed for
- for potable water, for wastewater, for water, process water
- Other characteristics
- stainless steel, automatic, backwash, compact, self-cleaning
- Flow
Max.: 3,700 m³/h
(130,664.267 ft³/h)Min.: 1 m³/h
(35.315 ft³/h)- Filtration size
Max.: 3,000 µm
Min.: 15 µm
Description
Overview
Drum microfiltration units are used as a final stage in water purification. These compact systems can be installed in channels or pressure lines and offer efficient removal of suspended solids with low energy, installation and maintenance costs. The mechanical simplicity and durable stainless steel construction make them suitable for municipal and industrial applications.
Principle of operation
Contaminated water passes through a rotating filter drum where gravity-driven filtration retains particles on the mesh. When fouling exceeds set limits, drum rotation activates an automatic countercurrent wash that flushes contaminants to the drain. Mesh sizes from 15 μm to 3 mm enable removal of a wide range of suspended matter. An effective cleaning system and robust stainless steel design ensure long service life; flexible drive belts allow reliable operation in aggressive environments and with frequent start-stop cycles.
Application
Drinking water and irrigation
Sewage treatment
Industry
Additional information
Detailed product documentation (PDF) is available on request.
Technical specifications
Drum microfiltration units are used as a final stage in water purification. These compact systems can be installed in channels or pressure lines and offer efficient removal of suspended solids with low energy, installation and maintenance costs. The mechanical simplicity and durable stainless steel construction make them suitable for municipal and industrial applications.
Principle of operation
Contaminated water passes through a rotating filter drum where gravity-driven filtration retains particles on the mesh. When fouling exceeds set limits, drum rotation activates an automatic countercurrent wash that flushes contaminants to the drain. Mesh sizes from 15 μm to 3 mm enable removal of a wide range of suspended matter. An effective cleaning system and robust stainless steel design ensure long service life; flexible drive belts allow reliable operation in aggressive environments and with frequent start-stop cycles.
Application
Drinking water and irrigation
- Surface water intake pretreatment and mechanical filtration
- Removal of suspended solids
- Protection of sprinkler nozzles and irrigation equipment
- Water reuse in process lines
Sewage treatment
- Polishing of treated effluent
- Preliminary wastewater treatment
- Protection of membrane bioreactors
- Alternative to secondary settling tanks
- Technological water clarification
Industry
- Process water filtration
- Protection of cooling circuits
- Microfiltration for industrial processes
Additional information
Detailed product documentation (PDF) is available on request.
Technical specifications
- Filtration method: gravity filtration in rotating drum
- Mesh sizes: 15 μm to 3 mm
- Automatic countercurrent cleaning system
- Construction: stainless steel
- Drive: flexible belts suitable for aggressive environments and high start-up frequency
- Installation: channel-mounted or in pressure systems
- Advantages: compact design, low energy consumption, low installation and maintenance costs
