Propeller mixer 4800

verticalcontinuousfor liquids

Overview
Flygt vertical-shaft mixers from the 4800 Series are designed for efficient mixing in deep tanks used in wastewater treatment and fermentation processes. They handle a wide range of liquids, including dense and viscous sludges, and support control of anaerobic, hypoxic and fermentative conditions regardless of tank depth or geometry.

Common applications

• Fermentation tanks
• Denitrification chambers
• Sludge storage and handling tanks

4800 Series mixer design

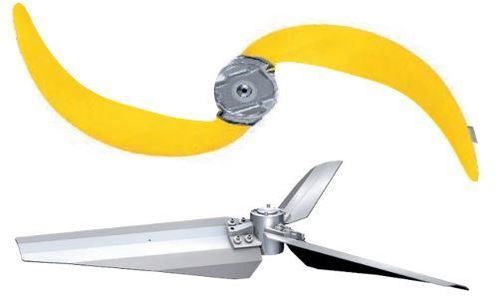

Components are engineered for continuous operation over extended service periods. The motor shaft runs parallel to the drive shaft; the rigid drive shaft and purpose-designed impellers deliver high mixing efficiency with low energy demand. Available impellers include a three-blade hydrophilic propeller and a non-blocking Banana impeller. Banana impellers, identifiable by their yellow blades, are self-cleaning during short-term reverse operation, improving operation where fibrous materials are present.

Configuration and selection
The Flygt 4800 Series offers multiple configuration options to match process requirements: impeller type, blade count, shaft length, motor power and installation method. Long-shaft configurations can be fitted with single or multiple impellers as needed for the application.

Additional information
Detailed technical data and selection guidance are available in the dedicated PDF brochure.

Technical specifications

• Type: Flygt vertical-shaft mixers (4800 Series)
• Designed for continuous operation over extended periods
• Parallel motor-shaft arrangement with rigid drive shaft
• Impeller options: three-blade hydrophilic propeller or non-blocking Banana impeller
• Banana impeller: self-cleaning during short-term reverse operation (suitable for fibrous media)
• High mixing efficiency with low energy consumption
• Configurable parameters: impeller type, blade count, shaft length, motor power, installation method
• Suitable for mixing dense and viscous sludges in deep tanks
• Enables control of anaerobic, hypoxic and fermentative processes regardless of tank depth, size, shape or volume
