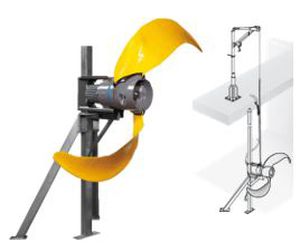

Rotor mixer 4400 series

verticalcontinuousfor liquids

Overview
Flygt low-speed mixers provide controlled tank mixing for industrial and wastewater applications. The 4400 Series combines a purpose-designed rotor, robust shaft seals and a resin-impregnated stator to deliver long service life and low operating costs.

Advantages

• Exceptional operational reliability
• High mass flow for effective mixing
• Energy-efficient rotor and motor combination
• Service-friendly design for fast inspection and repair
• Simple assembly and modular configuration
• Suitable for a wide range of tank sizes and process conditions
• Low total cost of ownership

Design and construction
The 4400 Series features a unique rotor profile that minimizes axial thrust and reduces energy consumption. The mixers are driven by a squirrel-cage induction motor; stator windings are resin-impregnated and rated at 180°C (355°F) insulation for superior thermal resistance. Shaft seals are Flygt-manufactured tungsten carbide (WCCR) units offering high mechanical strength and excellent sliding properties to reduce wear and leakage risk.

Installation and maintenance
Mixers are installed on stiffened guide rails at optimized depths to ensure efficient circulation and to withstand variable forces in the tank. The guide-rail and lifting system enables safe retrieval for inspection and service. A single lifting crane can operate multiple units, and the lower mounting handle allows controlled rotation during positioning.

Types
The 4400 Series is modular with three basic models. By selecting different motor sizes, gear ratios and impeller diameters, units can be tailored to specific mixing duties and process requirements.

Documentation
Detailed product information, dimensional drawings and performance data are available in the PDF document on the product page.

Specifications

• Series: 4400 Series
• Motor type: squirrel-cage induction motor
• Stator winding insulation: resin-impregnated, rated 180°C (355°F)
• Rotor: optimized design to minimize axial thrust and energy consumption
• Shaft seals: corrosion-resistant tungsten carbide (WCCR)
• Mounting: stiffened guide rails with lifting equipment and rotating handle
• Modularity: three models with combinations of motors, gear ratios and impeller diameters
• Primary benefits: high mass flow, energy efficiency, ease of service, low total cost of ownership
