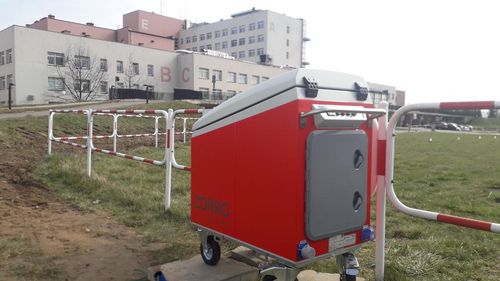

Hypochlorite disinfection unit ZORRO 2e

watermobile

Purpose
The ZORRO mobile chlorinator is intended for disinfection of various types of water and sewage in industrial and utility networks and installations. It is configured to dose widely available disinfectants such as sodium hypochlorite and commercial chlorine dioxide.

Models
ZORRO 2: fully independent of an external electrical source; suitable for dosing to systems with maximum operating pressure up to approximately 8–10 bar and can be adapted to dose other liquids in specific technological systems.
ZORRO 2e: cost‑reduced variant of ZORRO 2 without an internal 12 V power supply; requires continuous 230 V supply and features an adapted control panel.

Construction
ZORRO units have two separate lockable chambers to prevent unauthorized access.

• technical chamber: 60 L tank with manual mixer for preparing disinfectant solution, dosing pump, dosing hose and compartment for connectors and accessories
• electric chamber: contains electrical components and safety devices supplying the dosing pump

Outer housing: powder‑coated acid‑resistant steel. Inner housing: polyester‑glass composite with high chemical resistance due to possible contact with strong disinfectants.

Scope of application

• disinfection of newly built pipelines and water installations
• disinfection of water supply networks using hydrant method (e.g. secondary contamination)
• disinfection of sewage in channels, pipes and manholes
• disinfection of internal water installations (schools, hospitals, etc.)
• disinfection/activation of filter beds and pressure filters
• tank disinfection

Advantages

• mobile design with compact footprint and wheels for safe, easy transport
• housings made of materials with high chemical resistance
• wide range of accessories and dosing nozzles for versatile application
• tank equipped with manual mixer to prepare disinfectant solution directly in the unit

References
The ZORRO 2 model is used for sewage disinfection in hospitals in Białystok, Puławy, Lublin, Łomża, Pisz and Kielce.

Technical specifications

• Model names: ZORRO 2 and ZORRO 2e
• Tank capacity: 60 litres
• Tank: equipped with manual mixer
• Dosing: dosing pump and dosing hose included; compatible with sodium hypochlorite and commercial chlorine dioxide; can dose other liquids in specific systems
• Maximum dosing pressure: approximately 8–10 bar
• Chambers: separate technical and electric chambers, each lockable
• Outer housing: powder‑coated acid‑resistant steel
• Inner housing: polyester‑glass composite (high chemical resistance)
• Power: ZORRO 2 — includes 12 V supply, independent of external electrical source; ZORRO 2e — requires continuous 230 V supply (no internal 12 V supply)
• Mobility: compact, equipped with wheels for transport
• Accessories: compartment for connectors and accessories; wide range of accessories and dosing tips available
