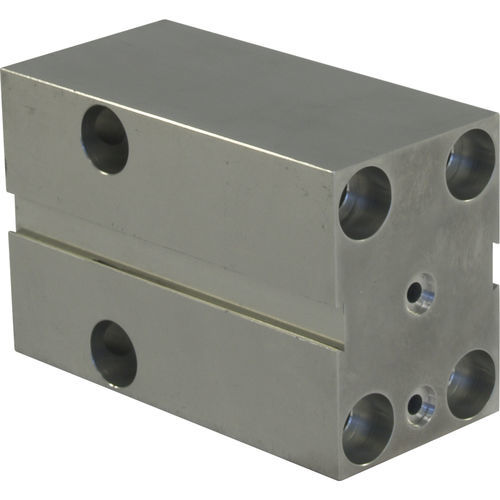

Hydraulic cylinder BDA Type F3pistonwith piston roddouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with piston rod
- Configuration
- double-acting
- Other characteristics
- precision
- Stroke
Max.: 200 mm
(7.874 in)Min.: 20 mm
(0.787 in)- Pressure
350 bar
(5,076.32 psi)- Rod diameter
16 mm, 20 mm, 25 mm, 32 mm, 40 mm
(1 in, 1 in, 1 in, 1 in, 2 in)- Force
Max.: 31.1 kN
Min.: 2.9 kN
- Operating Temperature
115 °C
(239 °F)
Description
Magnetic detection of the piston
Double sealing of the rod
Solid body with burnished bore
Solid piston rod with treated steel
Strokes precision ±0,3mm
The key is provided
Don’t use BDA in temperatures over 115°C (239°F)
Sensor must be at distance of 30 mm from any metallic surface.
