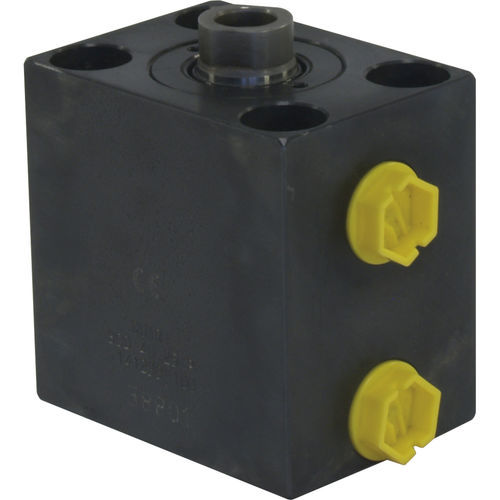

Hydraulic cylinder BDD Ppistonsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting
- Stroke
Max.: 100 mm
(3.937 in)Min.: 16 mm
(0.63 in)- Pressure
350 bar
(5,076.32 psi)- Rod diameter
Max.: 40 mm
(2 in)Min.: 10 mm
(0 in)- Force
Max.: 31.1 kN
Min.: 2 kN
Description
•Double rod sealing
•Solid body with burnished bore
•Solid piston rod, heat treated steel
•Strokes ± 0,3mm
•Warranty 2 years or 400 km (4 million cycles for a stroke of 50 mm)
•HELD IN STOCK
