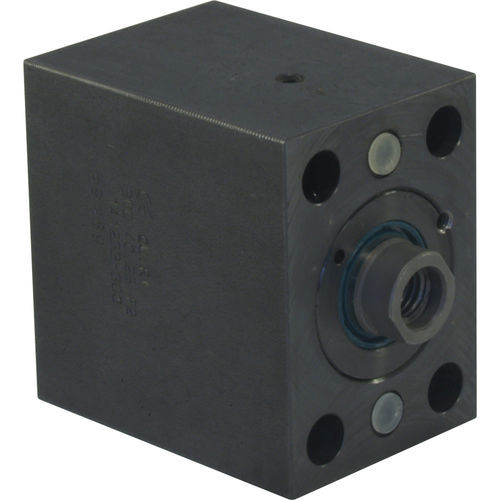

Hydraulic cylinder BDD F2 seriespistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Stroke
Max.: 100 mm
(3.937 in)Min.: 16 mm
(0.63 in)- Pressure
350 bar
(5,076.32 psi)- Rod diameter
Max.: 40 mm
(2 in)Min.: 10 mm
(0 in)- Force
Max.: 31.1 kN
Min.: 1.2 kN
Description
Feeding holes at the front.
Smooth holes with counterbores parallel to the rod.
Seals kits are available on stock
•Double rod sealing
•Solid body with burnished bore
•Solid piston rod, heat treated steel
•Strokes ± 0,3mm
•Warranty 2 years or 400 km (4 million cycles for a stroke of 50 mm)
•HELD IN STOCK
