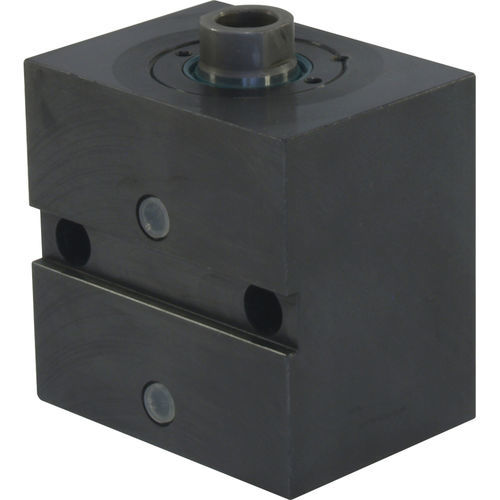

Hydraulic cylinder BDD F1 seriespistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Stroke
Max.: 100 mm
(3.937 in)Min.: 16 mm
(0.63 in)- Pressure
350 bar
(5,076.32 psi)- Rod diameter
Max.: 40 mm
(2 in)Min.: 10 mm
(0 in)- Force
Max.: 31.1 kN
Min.: 1.2 kN
Description
Feeding holes at the bottom.
Smooth holes perpendicular to the rod.
Key provided
Seals kits are available on stock
Double rod sealing
Solid body with burnished bore
Solid piston rod, heat treated steel
Strokes ± 0,3mm
Warranty 2 years or 400 km (4 million cycles for a stroke of 50 mm)
HELD IN STOCK
