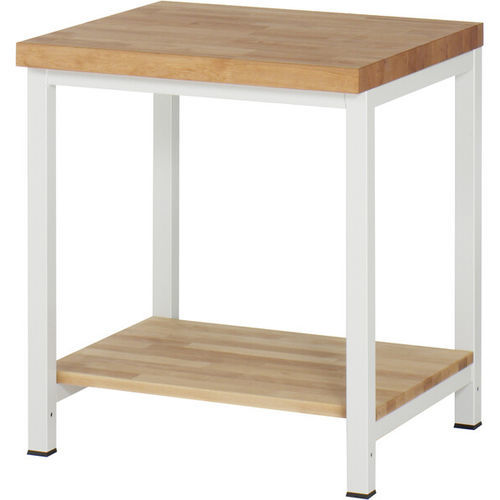

Beech workbench 03-8000-7-077B4S.12

metalfully-weldedwith shelves

Product description

• Beech solid wood worktop, 40 mm thickness.
• Finger-jointed beech lamellas with dovetail bonding. Front edge radiused, other edges chamfered. Surface protection with eco-friendly lacquer-oil. Classic worktop: load-bearing, pressure-resistant, long service life, wear-resistant and reusable. 100% in-house production using PEFC-certified wood from sustainable regional forestry.
• System subframe: B745 x D650 x H800 mm (system subframe, bench with frame construction, Series 8000).
• 4-leg welded frame with two pairs of leg supports made of profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet with end piece and anti-slip studs for secure standing. Cross braces made of C-profile (40x40x2 mm) under the worktop (front, rear) and below the shelf (center). Frame feet prepared for later installation of height adjustment and/or castor set.

Equipment

• Beech solid shelf at bottom (depth 557 mm, thickness 25 mm, compartment height 595 mm).

Configuration / Options

• Widths (selection): 750 mm, 1000 mm, 1250 mm, 1500 mm, 2000 mm, 2500 mm, 3000 mm.
• Depths: 700 mm (standard), optional 900 mm.
• Height: Standard (840 mm) or height-adjustable (optional height adjustment kit).
• Shelf: Beech solid (standard) / None / Steel sheet (650 mm) / Steel sheet (320 mm).
• Frame colour (RAL options): RAL3000 flame red, RAL5002 ultramarine blue, RAL5010 gentian blue, RAL5012 light blue, RAL5015 sky blue, RAL5018 turquoise blue, RAL5011 steel blue, RAL6011 reseda green, RAL7035 light grey (standard), RAL7045 tele grey, RAL9006 white aluminium, RAL9011 graphite black, RAL7031 blue grey, RAL7016 anthracite grey.
• Top types / surcharges (selection): Beech solid (+), EGB hard laminate (40/50 mm +), EGB melamine resin coating (40/50 mm +), Stainless steel top (40/50 mm +), Eterlux (40/50 mm +), Hard laminate (40 mm +), Linoleum (40/50 mm +), MDF (40/50 mm +), Melamine resin (40 mm +), Multiplex (40 mm +), Steel sheet top (40/50 mm +), Trovidur (40/50 mm +).
• Additional options / accessories (examples): Shelf for bench mounting, beech plywood edge, 200 mm height adjustment kit, perforated plate for bench mounting, side perforated panel, leveling, castor set, rear panel cladding, bench vise, various system attachments and fixing kits.

Technical data
Width: 750 mm
Static surface load: 1250 kg
Height: 840 mm
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Delivery time (standard configuration): 5 working days

Technical specifications

• EAN: 4040376956309
• Article number / SKU: 03-8000-7-077B4S.12
• Product name: Werkbank Modell 8000
• Series: Frame construction (Series 8000)
• Standard dimensions (example variant): B750 x D700 x H840 mm
• Worktop material (standard): Beech solid, 40 mm
• System subframe: 4-leg welded frame, profile steel tube 45x45x2 mm
• Static surface load: 1250 kg
• Delivery condition: Delivered assembled (product features: powder coating, 5-year warranty, Made in Germany)
