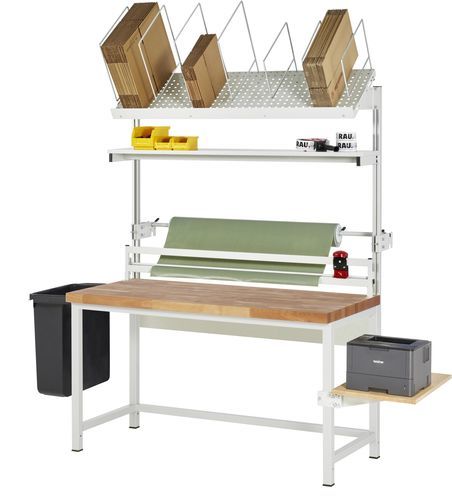

Height-adjustable packing station 03-8000-1-157B4H-VP04.12

beechmodularcustomizable

Product description

• Beech solid worktop, 40 mm thickness.
• Beech lamellas with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protected with eco-friendly lacquer oil. Classic worktop: load-bearing, pressure resistant, wear-resistant and reusable. 100% in-house production with PEFC-certified raw material from sustainable regional forestry.
• System underframe: W1495 x D650 x H800-1000 mm.
• 4-leg welded frame with two pairs of leg feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Legs with integrated height adjustment via profile steel tube (40x40x2 mm) with 20 mm hole pitch and end piece including leveling and anti-slip nubs. Cross braces in C-profile (40x40x2 mm) top (front, rear) and bottom (rear). Frame feet prepared for retrofitting a wheel set.

Equipment

• Fixing kit (cross beam) with 2 system supports (aluminium profile 40x40 mm) for system width 1500 mm.
• Shelf (depth 300 mm) with melamine resin board (22 mm) for system width 1500 mm.
• Tilting carton magazine (depth 450 mm) with stop rail for system width 1500 mm. Carton holders: 3 pcs (height 300 mm) and 4 pcs (height 450 mm).
• Unwinding unit for mounting on system supports for rolls with tube diameter 25 mm. Max roll width 1350 mm, max roll diameter dependent on mounting.
• Cutter for mounting on the worktop, cutting width approx. 1275 mm.
• Bin (60 l) for side mounting on the worktop, with robust carrying handles.
• Beech solid side shelf depth 700 mm, installation height infinitely adjustable.

Technical description
System underframe: W1495 x D650 x H800-1000 mm
Standard configuration width: 1500 mm
Worktop depth: 700 mm
Top type: Beech solid worktop, thickness: 40 mm
Height adjustment: from 840 mm to 1040 mm (with integrated leveling at the frame feet)
Static surface load: 1250 kg
Frame material: profile steel tube, cross braces C-profile, prepared for wheel set
Worktop finish: lacquer oil (eco-friendly), edges: front radius, other edges chamfered
Gluing: finger-joint gluing (beech lamellas)

Technical specifications

• EAN: 4040376546890
• Article no.: 03-8000-1-157B4H-VP04.12
• Width: 1500 mm (configurable e.g. 2000 mm as variant)
• Depth: 700 mm
• Height (adjustable): 840 mm - 1040 mm
• Top thickness: 40 mm
• Top material: beech solid (finger-joint gluing)
• Static surface load: 1250 kg
• Frame: 4-leg welded frame, profile steel tube (45x45x2 mm), cross braces C-profile (40x40x2 mm)
• Surface protection: eco-friendly lacquer oil
• Delivery condition: partially assembled (lead time approx. 5 working days)
