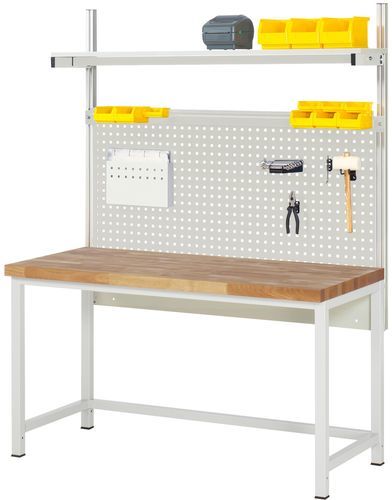

Adjustable assembly bench 8000
modular

Adjustable assembly bench - 8000 - RAU - modular
Adjustable assembly bench - 8000 - RAU - modular
Adjustable assembly bench - 8000 - RAU - modular - image - 2
Adjustable assembly bench - 8000 - RAU - modular - image - 3
Adjustable assembly bench - 8000 - RAU - modular - image - 4
Add to favorites
Compare this product

Characteristics

Options and accessories
adjustable, modular

Description

Description
  • Beech solid worktop, 40 mm thick.
  • Beech lamellas with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protection by eco-friendly lacquer-oil. Load-bearing, pressure-resistant, durable and reusable. 100% in-house production with PEFC-certified raw material from sustainable/regional forestry.
  • System underframe: W1495 x D650 x H800 mm.
  • 4-leg welded frame with two pairs of frame feet made of profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet with end caps including anti-slip studs. Cross braces from C-profile (40x40x2 mm) under the worktop (front, rear) and at the bottom (rear). Frame feet prepared for mounting/retrofitting of a height adjustment and/or a caster set.

Equipment
  • 1 x fastening set (cross beam) with 2 system supports (provides system width 1x1500 mm).
  • 1 x perforated panel W1415 x H650 mm.
  • With 4-sided system hole pattern (10x10 mm holes, hole center-to-center 38 mm) for acceptance of perforated-panel accessories.
  • 1 x shelf board W1500 x D300 mm; melamine resin coated board.
  • 1 x mounting rail W1415 mm for use with storage bins and/or power strip.
  • Installation height of add-on elements adjustable within the system supports.

Product highlights
  • Powder coating (frame options).
  • Surface load (static): 1250 kg.
  • Delivery partially assembled.
  • 5-year warranty.
  • Made in Germany.

Technical specifications
  • Width: 1500 mm
  • Depth: 700 mm
  • Height: 840 mm
  • Top type: Beech solid worktop
  • Top thickness: 40 mm
  • Surface load (static): 1250 kg
  • Model: Werkbank Modell 8000
  • Article number: 03-8000-1-157B4S-KS01.12
  • EAN: 4040376453235
  • Delivery time: 5 working days
