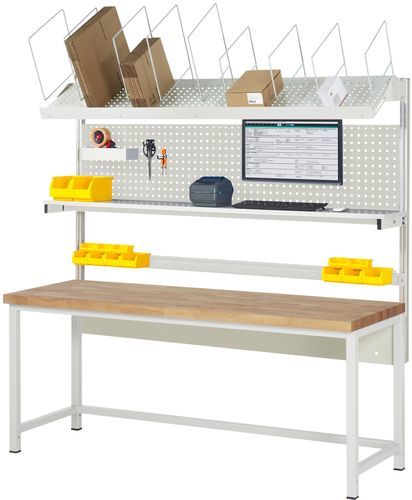

Multipurpose assembly bench 8000
modularadjustable

Multipurpose assembly bench - 8000 - RAU - modular / adjustable
Multipurpose assembly bench - 8000 - RAU - modular / adjustable
Multipurpose assembly bench - 8000 - RAU - modular / adjustable - image - 2
Multipurpose assembly bench - 8000 - RAU - modular / adjustable - image - 3
Multipurpose assembly bench - 8000 - RAU - modular / adjustable - image - 4
Add to favorites
Compare this product

Characteristics

Options and accessories
multipurpose, modular, adjustable

Description

Description
  • Beech solid worktop, thickness 40 mm.
  • Beech slats with wedge-finger-joint lamination. Front edge radiused, other edges chamfered. Surface protection by eco-friendly lacquered linseed oil. Classic worktop: pressure-resistant, wear-resistant, long service life, reusable. 100% in-house production from raw material sourced from sustainable regional forestry.
  • System underframe, W1995 x D650 x H800 mm.
  • 4-leg welded frame with two pairs of frame feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet fitted with end element and anti-slip nubs at the bottom for secure standing. Cross braces from C-profile (40x40x2 mm) under the worktop (front, rear) and below (rear). Frame feet prepared for future installation of height adjustment and/or castor set.


Equipment / scope of delivery (excerpt)
  • 1 x mounting kit (cross-carrier) with 2 system supports (resulting system width 1 x 2000 mm).
  • 1 x perforated plate W1915 x H450 mm.
  • Perforated plate with square system perforation (10 x 10 mm, center-to-center 38 mm) for mounting perforated-plate accessories.
  • 1 x shelf board W2000 x D300 mm; melamine resin coated board.
  • 1 x support rail W1915 mm for use with storage bins and/or power strip.
  • 1 x flat-screen mount with adapter for perforated plate (VESA MIS-D 75/100).
  • 1 x carton magazine W1915 x D650 mm; storage level with square system perforation. Front stop rail with 30 mm overhang. Number of carton holders (depth 435 mm): 4 pieces (height 300 mm) and 5 pieces (height 450 mm) freely positionable across the width.
  • Installation height of the add-on elements adjustable within the system supports.


Note
  • Worktop: beech solid, surface protection by lacquered linseed oil.
  • Frame: steel profiles with braces and preparation for extensions (height adjustment, castor set).


Characteristics / technical specifications
  • Width: 2000 mm
  • Depth: 700 mm
  • Height: 840 mm
  • Static surface load: 1250 kg
  • Top type: beech solid worktop
  • Top thickness: 40 mm
