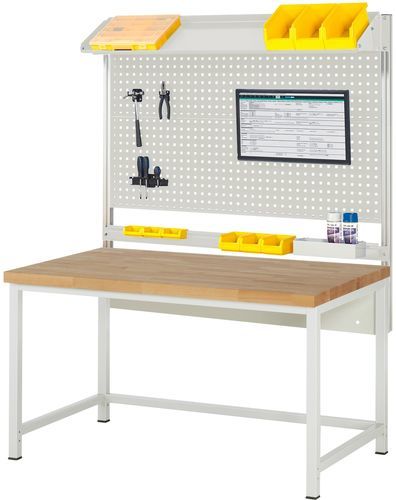

Multipurpose assembly bench 8000
adjustable

Multipurpose assembly bench - 8000 - RAU - adjustable
Multipurpose assembly bench - 8000 - RAU - adjustable
Multipurpose assembly bench - 8000 - RAU - adjustable - image - 2
Add to favorites
Compare this product

Characteristics

Options and accessories
multipurpose, adjustable

Description

Product description
  • Beech solid worktop, thickness 40 mm.
  • Beech lamellae with finger-joint gluing. Front edge rounded, other edges chamfered. Surface protection by eco-friendly lacquer oil. Classic worktop: load-bearing, pressure-resistant, durable, natural, wear-resistant and reusable. 100% in-house production from PEFC-certified raw material from sustainable regional forestry.
  • System underframe W1495 x D850 x H800 mm.
  • 4-leg welded frame with two pairs of frame feet made of 45x45x2 mm steel profile including depth bracing (top and bottom). Bottom of frame feet with end element including anti-slip nodules for secure standing. Crossbars in C-profile (40x40x2 mm) under the worktop (front, rear) and below (rear). Frame feet prepared for integration/retrofit of a height adjustment and/or castor set.


Equipment
  • 1 x fastening kit (cross carrier) with 2 system supports (gives system width 1 x 1500 mm).
  • 2 x perforated panel B1415 x H450 mm.
  • Square hole system (10 x 10 mm holes, center-to-center 38 mm) for mounting perforated-panel accessories.
  • 1 x tilting metal shelf B1415 x D300 mm; all-round flanges.
  • 1 x support rail B1415 mm for accommodating plastic storage bins (open hanging edge at the rear of the bins required) and/or power strip.
  • 1 x flat-screen holder with mounting adapter for perforated panel (VESA MIS-D 75/100).
  • Installation height of add-on elements adjustable within the system supports.


Notes
  • Uniform surface load (static) up to 1250 kg (see technical data).
  • Express production available at extra cost; delivery times and variants affect price and lead time.


Characteristics / Technical specifications
  • Width: 1500 mm
  • Depth: 900 mm
  • Height: 840 mm
  • Worktop type: Beech solid worktop
  • Worktop thickness: 40 mm
  • Surface load (static): 1250 kg
  • System underframe: B1495 x T850 x H800 mm
  • Frame: 4-leg welded frame, steel profile 45x45x2 mm, crossbars C-profile 40x40x2 mm
