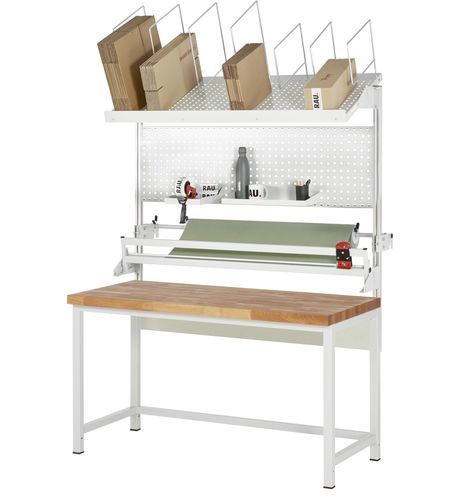

Height-adjustable packing station 8000

beechrobustindustrial

Product description

• Beech solid worktop, 40 mm thick.
• Finger-jointed beech lamellas. Front edge rounded, other edges chamfered. Surface protected with an eco-friendly lacquer-oil. Typical industrial worktop: load-bearing, wear-resistant and reusable. 100% in-house production using sustainably sourced regional wood.
• System base for 1500 mm system width, depth 650 mm, height adjustable 840–1040 mm.
• 4-leg welded frame with two pairs of leg supports made from rectangular steel tube (45x45x2 mm) including depth braces (top and bottom). Legs feature integrated height adjustment via profiled steel tube (40x40x2 mm) with 20 mm hole spacing and end element with level compensation and anti-slip feet. Crossbars in C-profile (40x40x2 mm) under the worktop (front, rear) and below (rear). Legs prepared for retrofitting a castor set.

Equipment

• Fastening set (cross beams) with 2 system supports (aluminium profile 40x40 mm) for 1500 mm system width.
• Cardboard magazine (depth 650 mm) tiltable with stop for 1500 mm system width. Cardboard holders (depth 435 mm): 3 pieces (height 300 mm) and 4 pieces (height 450 mm).
• Pegboard for mounting pegboard accessories or flat-screen holder, for 1500 mm system width.
• Shelf A2 for pegboard to store tools and accessories.
• Shelf A3 for pegboard to store tools and accessories.
• Unwinder unit to mount on system supports for 1500 mm system width. For rolls with a core diameter of 25 mm. Max roll width 1350 mm; max roll diameter depends on mounting.
• Cutter with blade and 2 mounting brackets (stepless tilt adjustment) to mount on system supports for 1500 mm system width. Cutting width approx. 1275 mm.

Technical data
Width: 1500 mm
Static surface load: 1250 kg
Depth: 700 mm
Height from: 840 mm
Height to: 1040 mm
Top type: Beech solid worktop
Top thickness: 40 mm

• Width: 1500 mm
• Depth: 700 mm
• Height adjustable: 840–1040 mm
• Top type: Beech solid worktop, 40 mm thick
• Static surface load: 1250 kg
• System base: 4-leg welded frame with height adjustment and crossbars
