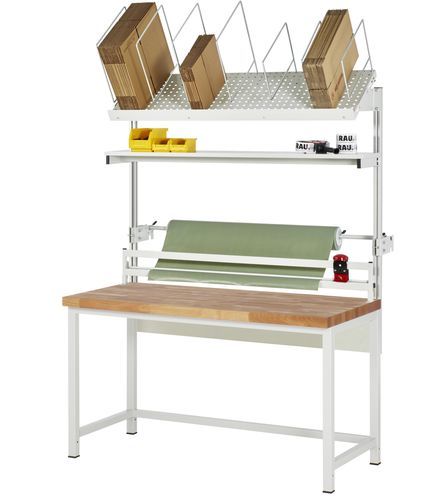

Height-adjustable packing station 03-8000-1-157B4H-VP03.12
beechmodularrobust

Add to favorites

Compare this product

Characteristics

Type

height-adjustable

Worktop material

beech

Other characteristics

modular, robust, customizable

Applications

industrial, order-picking

Width

1,500 mm
(59 in)

Depth

700 mm
(28 in)

Height

Max.: 1,040 mm
(41 in)

Min.: 840 mm
(33 in)

Load

1,250 kg
(2,755.8 lb)

Product description

Beech solid worktop, thickness 40 mm.
Beech lamellas finger-joint glued. Front edge rounded (radius), other edges chamfered. Surface protection by eco-friendly lacquer oil. Classic worktop: load-bearing, compression-resistant, durable, natural, wear-resistant, reusable. 100% in-house production (from tree to worktop) using PEFC-certified raw material from sustainable regional forestry.
System underframe: W1495 x D650 x H800-1000 mm.
4-leg welded frame with two pairs of leg supports made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Feet with integrated height adjustment using profile steel tube (40x40x2 mm) with 20 mm hole pitch and end element including level compensation and anti-slip nubs for secure stand. Cross braces from C-profile (40x40x2 mm) under the worktop (front, back) and lower (back). Frame prepared for fitting/retrofitting of a castor set.

Equipment

Fixing kit (cross beam) with 2 system supports (aluminum profile 40x40 mm) for system width 1500 mm.
Edge shelf (depth 300 mm) with melamine resin board (thickness 22 mm) for system width 1500 mm.
Carton magazine (depth 450 mm) tiltable with stop rail for system width 1500 mm. Number of carton holders (depth 435 mm): 3 pieces (height 300 mm) and 4 pieces (height 450 mm).
Unwinding unit for mounting on system supports for system width 1500 mm. For holding rolls (paper, cardboard, film) with a tube diameter of 25 mm. Max roll width 1350 mm; max roll diameter depends on mounting.
Cutting device with cutting blade for mounting on the worktop for system width 1500 mm. Cutting width approx. 1275 mm.

Characteristics / Technical specifications
