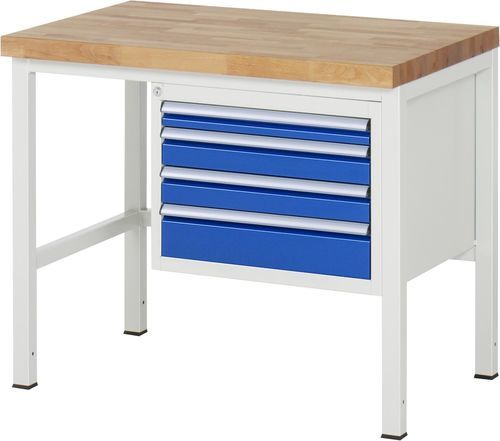

Beech workbench 8132

for workshopswith drawer4-drawer

Description

• 40 mm solid beech worktop. Finger-jointed beech lamellas with dovetail joint bonding. Front edge with radius, other edges chamfered. Surface protected with eco-friendly lacquer oil. Classic worktop properties: load-bearing, compression-resistant, durable, natural, wear-resistant, reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe, W995 x D650 x H800 mm.
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet fitted with end caps including anti-slip nibs for stable support. Cross braces from C-profile (40x40x2 mm) mounted under the worktop (front, rear) and below (rear).
• Frame feet prepared for fitting/retrofitting a height adjustment and/or a castor set.

Equipment

• 1 under-bench cabinet on the right, W580 x D650 x H440 mm; layout: 4 drawers (front heights L: 1xH60, 2xH90, 1xH120). Drawer interior W490 x D560 mm, load capacity 100 kg; usable height = front height - 15 mm.
• Roller-bearing partial-extension slides (90% travel) with self-insert and anti-reverse lock.
• Continuous handle rail ErgoScript®: steel base with aluminium-coloured overlay and integrated clear cover (incl. labelling strip).
• Central locking (pin cylinder lock with 2 keys).

Technical data (overview)
Extension type: partial extension 90%
Width: 1000 mm
Depth: 700 mm
Height: 840 mm
Static surface load: 1250 kg
Number of drawers: 4
Top type: solid beech worktop
Top thickness: 40 mm

Characteristics / technical specifications

• Extension type: partial extension 90%
• Width: 1000 mm (other widths available: 750, 1250, 1500, 2000 mm)
• Depth: 700 mm (alternative 900 mm)
• Height: 840 mm (standard), optionally height-adjustable
• Top thickness: 40 mm (solid beech)
• Static surface load: 1250 kg
• Drawers: roller-bearing partial-extension slides 90%, drawer load capacity 100 kg
• Handle rail: ErgoScript® with labelling strip
• Security: central lock (pin cylinder lock incl. 2 keys)
