Woodworking assembly bench 8000
electricmodularmultipurpose

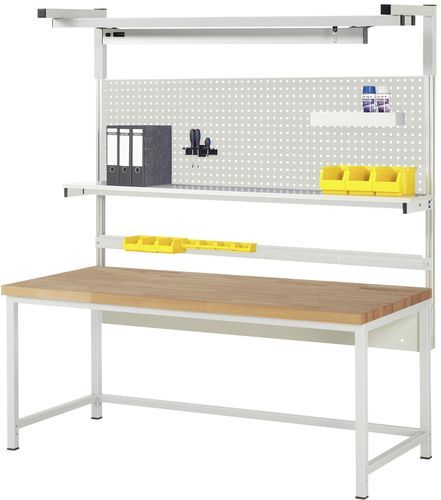

Woodworking assembly bench - 8000 - RAU - electric / modular / multipurpose
Woodworking assembly bench - 8000 - RAU - electric / modular / multipurpose
Woodworking assembly bench - 8000 - RAU - electric / modular / multipurpose - image - 2
Add to favorites
Compare this product

Characteristics

Product to be assembled
woodworking
Power source
electric
Options and accessories
modular, multipurpose, adjustable

Description

Description
  • Beech solid worktop, thickness 40 mm.
  • Beech slat with finger-joint gluing. Front edge radiused, other edges chamfered. Surface protection with environmentally friendly lacquer-oil. Classic worktop: load-bearing, pressure resistant, wear-resistant and reusable. 100% own production with PEFC-certified raw material from sustainable regional forestry.
  • System underframe: W1995 x D850 x H800 mm.
  • 4-leg welded frame with two pairs of frame feet made of profile steel tube (45 x 45 x 2 mm) including depth braces (top and bottom). Frame feet with end element including anti-slip nib for secure standing. Cross braces from C-profile (40 x 40 x 2 mm) under the worktop (front, rear) and below (rear). Frame prepared for integration/retrofit of height adjustment and/or castor set.


Equipment
  • 1 x fastening kit (crossbeam) with 2 system supports (provides system width 1 x 2000 mm).
  • 1 x perforated panel W1915 x H650 mm.
  • Perforation: square hole system (10 x 10 mm, centre-to-centre 38 mm) for use with perforated panel accessories.
  • 1 x shelf panel W2000 x D300 mm; melamine resin coated panel.
  • 1 x support rail W1915 mm for mounting storage bins (open hanging edge required on back of bins) and/or power strip.
  • 1 x pair of brackets D550 x H300 mm for mounting guide rail/assembly rail (max. 2 pieces).
  • 2 x guide rail/assembly rail W2000 mm for mounting lighting strip and/or trolley with carabiner.
  • 1 x trolley with carabiner for use with spring balancer, balancer, etc.
  • 1 x long-area luminaire: housing in aluminum, integrated electronic LED driver, on/off switch, connection cable with plug. Light colour: neutral white (5000 K). Max illuminance: 1308 lx. Lamp power: 30 W. Luminous flux: 3037 lm. Efficiency: 101 lm/W. CE marked. Protection rating: IP40. Rated lifetime at ambient temperature -20° to +40°; LED components L80B10 > 50,000 hours.
  • Installation height of accessories adjustable within system supports.


Product highlights
  • Powder coating on the frame (depending on version).
  • Static surface load 1250 kg.
  • Delivered partially assembled.
  • 5 years warranty.
  • Made in Germany / in-house wood processing production.


Characteristics / Technical specifications
  • Width: 2000 mm
  • Depth: 900 mm
  • Height: 840 mm
  • Surface load (static): 1250 kg
  • Worktop type: Beech solid worktop
  • Worktop thickness: 40 mm
  • System underframe (dimensions): W1995 x D850 x H800 mm
  • Frame: 4-leg welded frame, profile steel tube 45 x 45 x 2 mm, cross braces C-profile 40 x 40 x 2 mm
  • Accessory hole standard: square hole system 10 x 10 mm, hole centre spacing 38 mm
  • Lighting: LED, 5000 K, 30 W, 3037 lm, IP40, L80B10 > 50,000 h
  • Configurable variants (product options): width options 1500 / 2000 mm; depth 700 / 900 mm; frame colours: RAL selection (e.g. RAL7035 light grey as standard).
