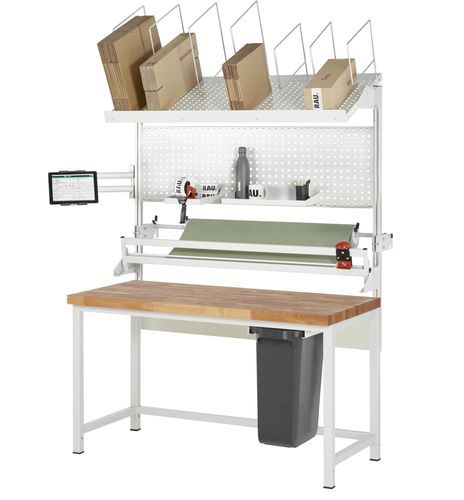

Height-adjustable packing station 03-8000-1-157B4H-VP06.12

beechrobustmodular

Description

• Beech solid worktop, thickness 40 mm.
• Beech lamellas with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protection by eco-friendly lacquer oil. Classic worktop: load-bearing, pressure-resistant, long-lasting, natural, wear-resistant, reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe: W1495 x D650 x H800–1000 mm.
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet bottom with integrated height adjustment via profile steel tube (40x40x2 mm) with hole raster (20 mm) and end element including level compensation and anti-slip nib for secure standing. Cross braces from C-profile (40x40x2 mm) under the worktop (front, rear) and below (rear). Frame feet prepared for acceptance/retrofitting of a castor set.

Equipment

• Fastening kit (cross beams) with 2 system supports (aluminum profile 40x40 mm) for system width 1500 mm.
• Cardboard magazine (depth 650 mm) tiltable with stop rail for system width 1500 mm. Number of carton holders (depth 435 mm): 3 pieces (height 300 mm) and 4 pieces (height 450 mm).
• Punched plate for mounting perforated-plate accessories or flat-screen holder, for system width 1500 mm.
• Shelves A2 and A3 for punched plate for storage of tools and accessories.
• Unwinding unit for mounting on system supports to accept rolls (paper, cardboard, film) with shaft diameter 25 mm; maximum roll width 1350 mm (dependent on mounting).
• Cutter with cutting blade and 2 mounting brackets (stepless tilt adjustment) for mounting on system supports. Cutting width approx. 1275 mm.
• Swivel arm with flat-screen holder (reach 700 mm) and tablet holder for tablets 7–13 inches.
• Pull-out waste bin (volume 60 l) for under-table mounting with robust carrying handles.

Technical data
Width: 1500 mm
Static surface load: 1250 kg
Depth: 700 mm
Height from: 840 mm
Height to: 1040 mm
Top type: beech solid worktop
Top thickness: 40 mm

Characteristics / Specifications

• Article number: 03-8000-1-157B4H-VP06.12
• EAN: 4040376546913
• Lead time: 5 working days
• Gross price (incl. VAT): €3,502.17 (net price available on product page)
• Express production optional (surcharge, production/shipping next day if order received by 11:00)
• Standard frame colour: RAL7035 light grey (other RAL colours available)
