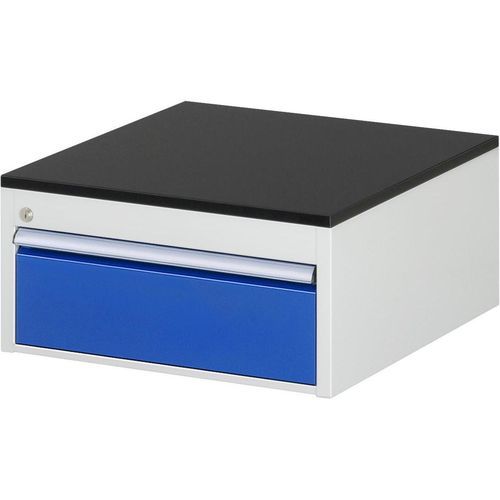

Small parts storage chest of drawers 03-L1.0A-M.11
Add to favorites
Compare this product
Characteristics
- Options
- for small parts storage
Description
Short description
Equipment
Technical data
Special features / surfaces
Characteristics / technical specifications
- Cabinet with melamine top (19 mm) and black melamine direct coating on top and bottom; melamine coating compliant with DIN 68765.
- Water-splash resistant and stain-resistant; surface performance certified to EN14322/EN14323 (abrasion class 3A, scratch resistance N>1.5, stain resistance ≥3).
- Low susceptibility to cracking (≥3); cigarette-burn behaviour class 3; steam resistance class 4. Migration behavior certified for food contact suitability.
- Panel core: particleboard to EN309/EN312 (emission class E1); edge: light grey antistatic ABS. Surface classification: normally flammable (B2) per DIN 4102.
Equipment
- 1 x drawer size L (front height H 180 mm).
- Internal drawer dimension B490 x T560 mm, load capacity 100 kg. Usable drawer height = front height minus 15 mm.
- Roll-bearing partial-extension slides (90% travel) with soft-start and return lock.
- Continuous ErgoScript® handle rail: steel base with aluminium-coloured overlay and clear cover (includes labeling strip).
- Central locking (pin-cylinder lock) with 2 keys.
Technical data
- Extension type: partial-extension 90%
- Width: 580 mm
- Height: 280 mm
- Depth: 650 mm
- Number of drawers: 1
- Static surface load: 750 kg
- Top type: melamine top
- Top thickness: 19 mm
Special features / surfaces
- Melamine resin coating per DIN 68765, tested for migration behavior and suitable for applications with potential food contact.
- Resistant to water splashes, dirt, abrasion and scratches as per listed standards.
- All-round light grey antistatic ABS edge.
Characteristics / technical specifications
- Brand: RAU
- Denomination: Serie 7000
- Article number: 03-L1.0A-M.11
- EAN: 4040376230584
- Width: 580 mm
- Height: 280 mm
- Depth: 650 mm
- Number of drawers: 1 (drawer size L, H 180 mm)
- Internal drawer dimension: B490 x T560 mm
- Drawer load capacity: 100 kg
- Extension type: partial-extension 90% (roll-bearing slides with soft-start and return lock)
- Top type: melamine top, thickness 19 mm
- Panel core: particleboard to EN309/EN312 (emission class E1)
- Surface standards: melamine resin per DIN 68765; EN14322/EN14323 (abrasion class 3A, scratch resistance N>1.5, stain resistance ≥3, crack resistance ≥3, cigarette ember class 3, steam class 4)
- Fire behaviour: normally flammable (B2) per DIN 4102
- Edges: all-round light grey antistatic ABS
- Handle rail: ErgoScript® (steel base, aluminium-coloured overlay, clear cover with labeling strip)
- Locking: central lock with pin-cylinder and 2 keys
- Delivery condition: delivered assembled (lead time indicated on product page)
