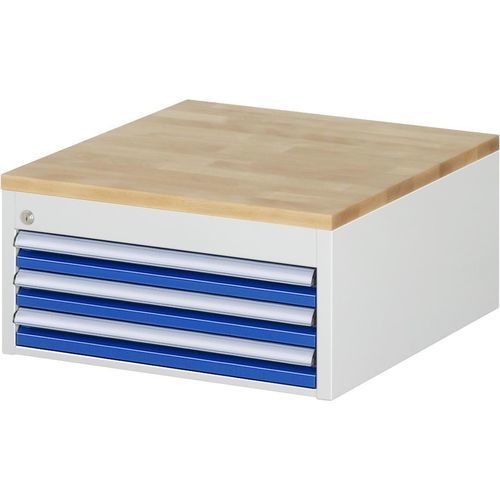

Chest of drawers 03-L1.2A-B.11

Product overview

• Top cabinet supplied with a solid beech worktop, thickness 25 mm.
• Beech lamellae finger-joint glued. Front edge radius, other edges chamfered. Surface protected with environmentally friendly lacquer-oil. Durable, wear-resistant beech top produced from PEFC-certified regional timber.

Equipment

• 3 × drawer fronts (3 × H60 mm).
• Drawer interior dimensions: W490 × D560 mm, load capacity 100 kg. Usable drawer height = front height minus 15 mm. Roll-bearing partial-extension slides (90% extension) with self-closing and anti-return device.
• Continuous handle strip ErgoScript®: steel base with aluminum-coloured overlay and integrated transparent cover (including label strip).
• Central lock (pin cylinder lock with 2 keys).

Technical data
Extension type: Partial extension 90 %
Width: 580 mm
Static surface load: 750 kg
Height: 285 mm
Number of drawers: 3
Depth: 650 mm
Top type: Beech top
Top thickness: 25 mm

Technical specifications

• Extension type: Partial extension 90 %
• Width: 580 mm
• Height: 285 mm
• Depth: 650 mm
• Number of drawers: 3
• Top type: Beech top
• Top thickness: 25 mm
• Static surface load: 750 kg
• Drawer interior (W): W490 x D560 mm, load capacity per drawer: 100 kg
• Handle: ErgoScript® with label strip
• Lock: Central lock (pin cylinder, 2 keys)
